UA400
UA400
The Takumi UA series, high speed 5-axis machining center, adopts RAM-type structural design, providing compact and high-rigidity machining features. UA series is designed for multiaxes machining of small and large size parts in market such as automative and aerospace applications.
High speed direct drive spindle
The high-power direct drive spindle limits vibration, noise and power loss during high speed rotations to achieve superior part finish.
Effective chip removal solutions
Special structure design for work table which provides easy chip removal. The special design of the work table and flushing coolant system on UA400 provides excellent chip removal.
Robost and compact rotary table

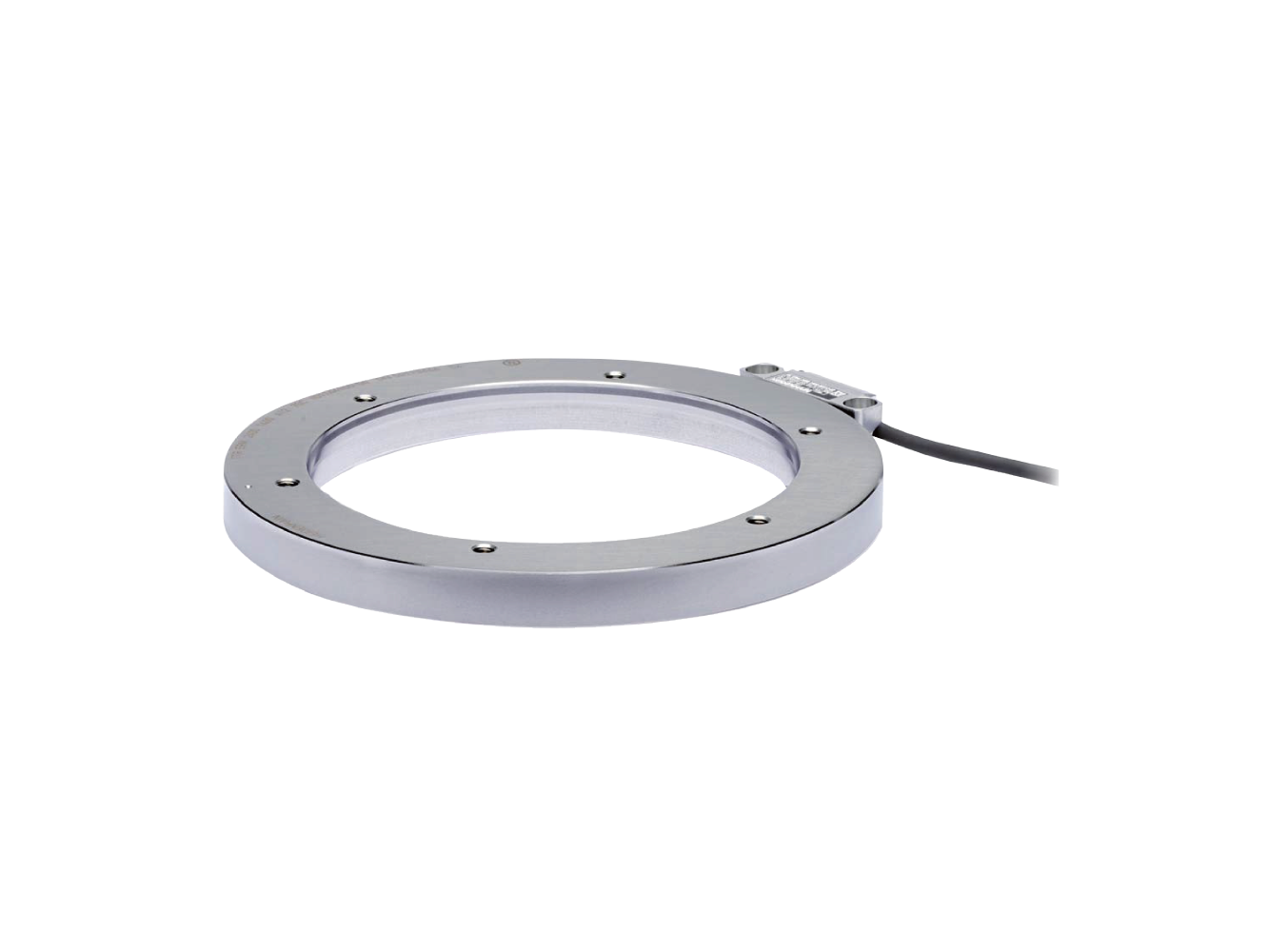

The rotary table uses worm gear promoting quicker response, higher torque, outstanding position accuracy and lower service maintenance. High precision rotary encoders installed on A/C axis guarantees high accuracy.
Travel
| Items | UA400 |
|---|---|
| X-axis | 630 mm |
| Y-axis | 620 mm |
| Z-axis | 510 mm |
| Distance from spindle nose to table | 100-610 mm (Direct drive) |
Table
| Items | UA400 |
|---|---|
| Dimension | Ø400 mm |
| Max. load | 200 kg (Horizontal) / 150 kg(Vertical) |
| T-slot (Width × Number x Distance) | 12 x 8 x 45° mm |
Spindle
| Items | UA400 |
|---|---|
| Spindle type | Direct drive |
| Spindle speed | 15,000 rpm |
| Spindle motor power (Cont./10 min.) | 7.5/15 kW |
| Spindle taper | BBT40 |
Feed rate
| Items | UA400 |
|---|---|
| X/Y/Z-axis rapid feed rate | 36 / 36 / 36 m/min |
| Cutting feed rate | 1~12,000 mm/min |
ATC
| Items | UA400 |
|---|---|
| Magazine type | Chain type |
| Number of tools | 40 pcs |
| Max. tool weight | 7 kg |
| Max. tool length | 280 mm |
| Max. tool diameter (next pockets empty) | 75 / 125 mm |
C-axis
| Items | UA400 |
|---|---|
| Table diameter | Ø 400 mm |
| Rotation range | 360° |
| Positioning accuracy | ±5" |
| Rotation speed | 756 Nm |
| Working torque | 22.2 rpm |
A-axis
| Items | UA400 |
|---|---|
| Rotation range | -120° ~ +30° |
| Positioning accuracy | ±5" |
| Rotation speed | 22.2 rpm |
| Working torque | 756 Nm |
Space & System Requirement
| Items | UA400 |
|---|---|
| Controller | FANUC 0iMF-Plus (3+2 axis machining ) Heidenhain TNC7 (5 axis simultaneuos) |
| Pneumatic pressure | 6 kgf/cm2 |
| Electrical power consumption | 60 KVA |
| Machine net weight | 9500 Kg |
| Max. floor space (W x L x H) | 4,418 x 2,966 x 3,184 mm |
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF-Plus controller (3+2 axis machining) |
| 2 | HEIDENHAIN TNC7 controller (5 axis simultaneuos machining) |
| 3 | 15,000rpm, BBT40, direct drive spindle |
| 4 | 40T, arm type tool magazine |
| 5 | Spindle cooling system |
| 6 | Spindle oil air lubrication device |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system |
| 9 | Air blast through spindle taper |
| 10 | Full enclosed splash guard |
| 11 | Washing gun & air gun |
| 12 | Coolant tank & coolant flushing system |
| 13 | Working lamp |
| 14 | 3-color signal lamp |
| 15 | Air conditioner |
| 16 | Rotary encoders for rotary A/C-axis |
| 17 | Foundation pads & bolts kits |
| 18 | Manual pulse generator |
| 19 | Operation manuals, PLC & electrical circuit diagrams |
| 20 | RS232, RJ45 interface |
| 21 | Scraper type chip conveyor |
| 22 | Tool kits |
| No | Optional Accessories |
|---|---|
| 1 | Linear scales (X/Y/Z) |
| 2 | Coolant through spindle system (30/70 bar) |
| 3 | Oil mist cutting device |
| 4 | Oil mist collector |
| 5 | Automatic tool length measurement system |
| 6 | Automatic workpiece measurement system |
| 7 | Transformer |
| 8 | Spindle thermal compensation |
| 9 | CE safety standard |
