V10、V11、V12、V15、V18、V20、V22、V32
V10、V11、V12、V15、V18、V20、V22、V32
The V Series can handle a wide range of workpieces for all kind of applications thanks to a highly versatile versions that comes with V10, V11, V12, V15, V20, V22, V32. The V Series are designed for heavy duty cutting capability and powerful cutting performance.

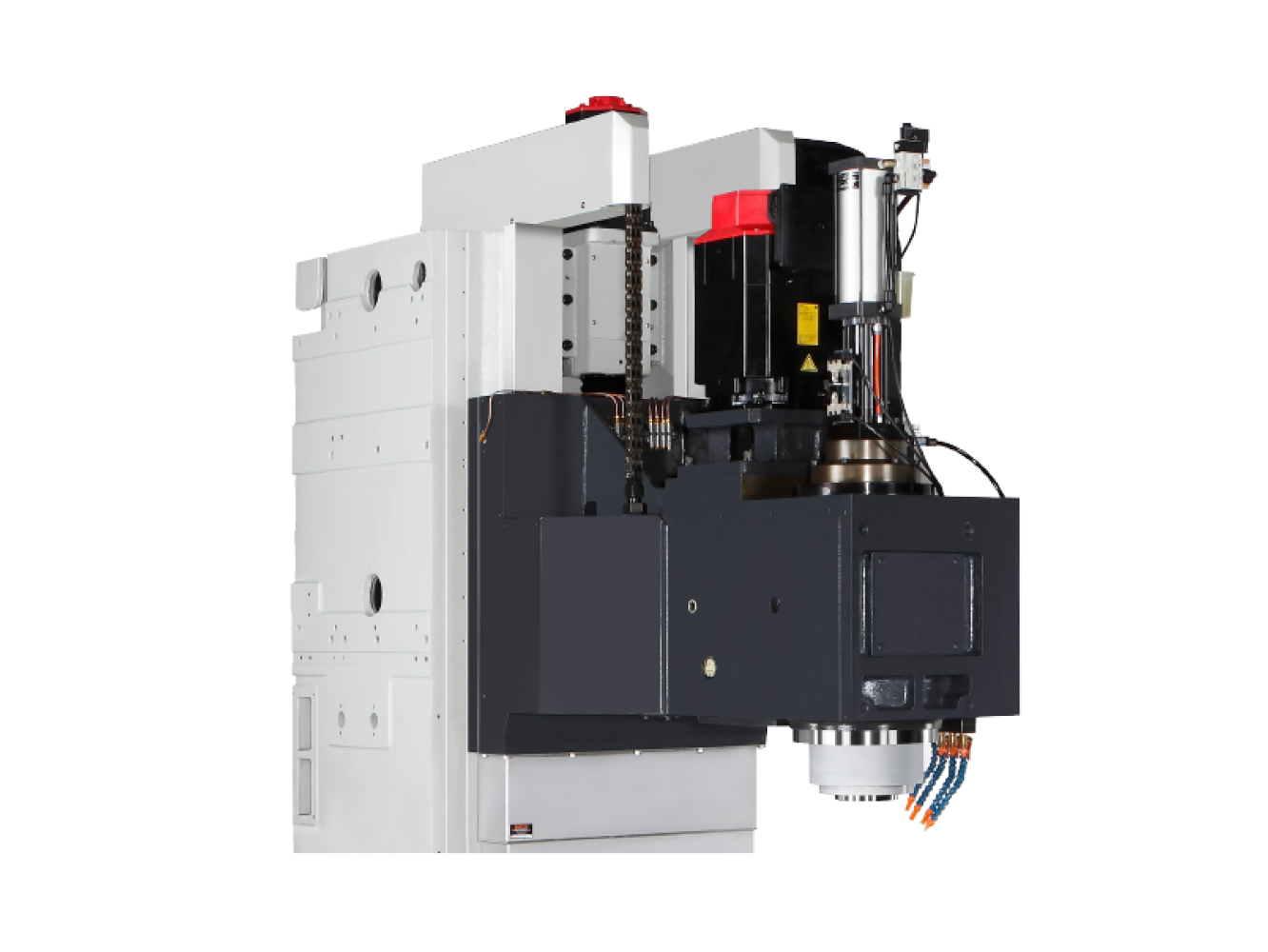

Counter Balance Design on Spindle Head
The machine has a guided counterbalance system to eliminate vibration and provide smooth support for the extended head structure, resulting in superior part finish.

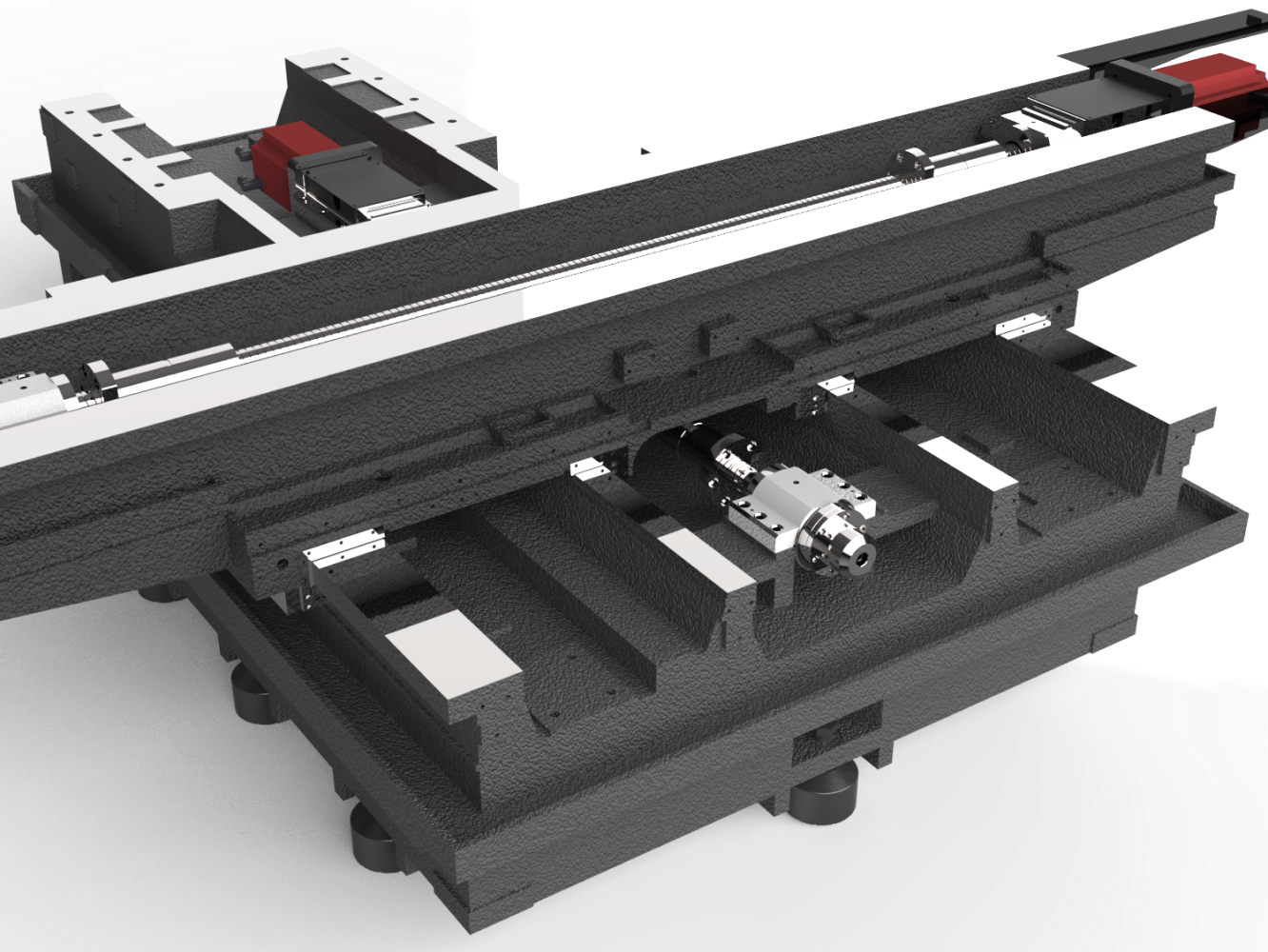

Highly rigid box way structure
V Series are equipped with box guideways on all axes. V10-V20 are equipped with 4 boxways, while V22-V32 are equipped with 6 boxways. It guarantees excellent heavy-duty cutting performance, stability and minimizes vibration.

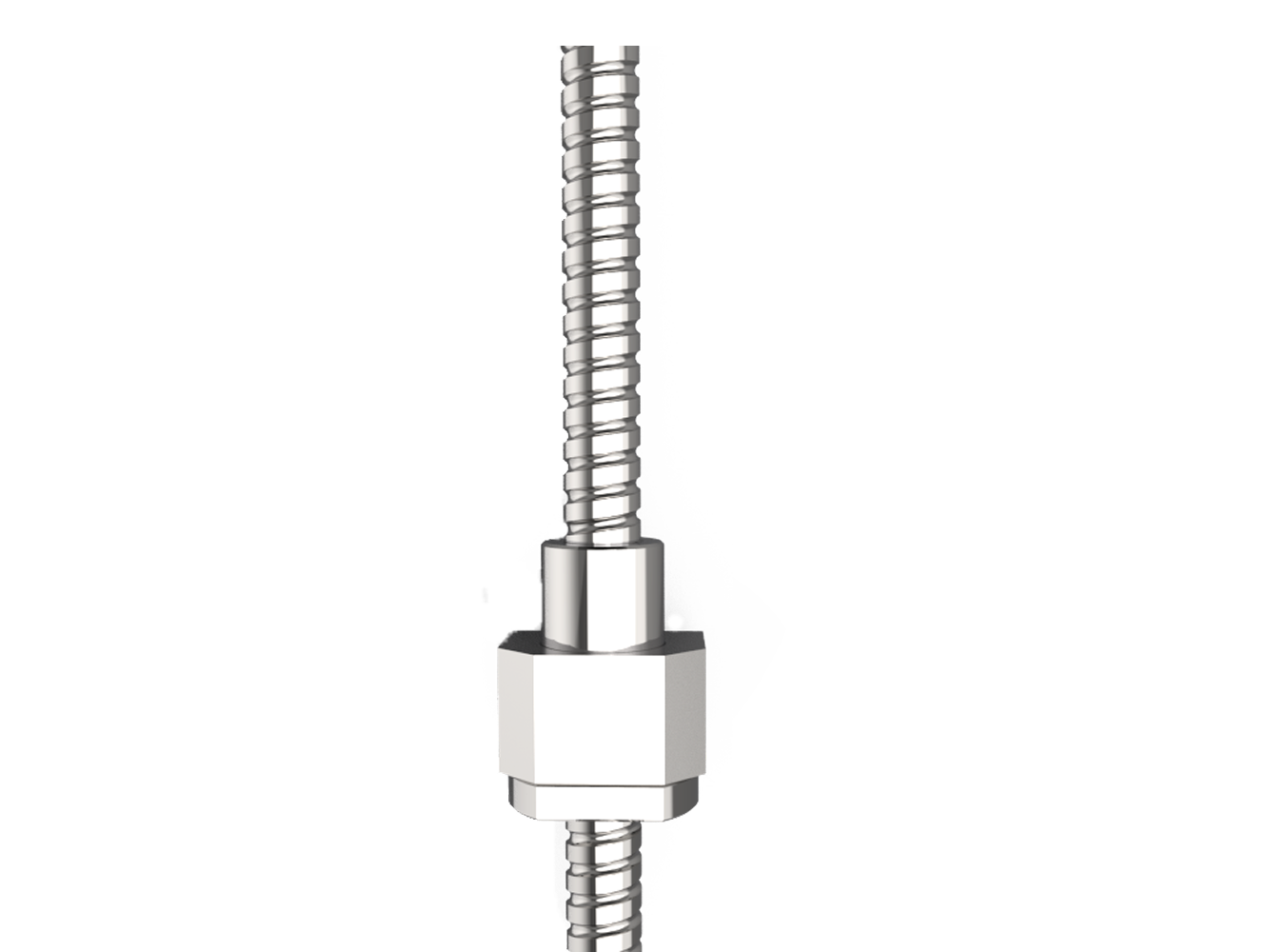

Premium Ballscrews
V Series are equipped with high precision ballscrews, featuring high load capacity while also providing high durability and rigidity during heavy duty cutting.
Travel
左右滑動
| Items | Unit | V10 | V11 | V12 | V15 | V18 | V20 | V22 | V32 |
|---|---|---|---|---|---|---|---|---|---|
| X axis | mm | 1000 | 1100 | 1200 | 1524 | 1800 | 2000 | 2200 | 3200 |
| Y axis | mm | 660 | 660 | 660 | 762 | 850 | 1066 | 1066 | 1066 |
| Z axis | mm | 610 | 610 | 610 | 720 | 750 | 750 | 750 | 750 |
| Distance from spindle nose to table | mm | 150-760 | 150-760 | 150-760 | 150-870 | 200-950 | 200-950 | 200-950 | 200-950 |
| Distance from spindle nose to Z-axis guide-way | mm | 700 | 700 | 700 | 820 | 920 | 1120 | 1120 | 1120 |
Table
左右滑動
| Items | Unit | V10 | V11 | V12 | V15 | V18 | V20 | V22 | V32 |
|---|---|---|---|---|---|---|---|---|---|
| Dimension | mm | 1050 × 650 | 1150 × 650 | 1250 × 650 | 1600 × 760 | 1900 × 850 | 2200 × 1025 | 2200 × 1025 | 3200 × 1025 |
| Max. load | kg | 1000 | 1100 | 1200 | 1500 | 2000 | 2000 | 3000 | 4500 |
| T-slot (width × pitch × number) | mm | 18 × 100 × 5 | 18 × 100 × 5 | 18 × 100 × 5 | 22 × 150 × 5 | 22 × 150 × 5 | 22 × 150 × 7 | 22 × 150 × 7 | 22 × 150 × 7 |
Spindle
左右滑動
| Items | Unit | V10 | V11 | V12 | V15 | V18 | V20 | V22 | V32 |
|---|---|---|---|---|---|---|---|---|---|
| Spindle type | - | Direct-drive | Gear | Direct-drive | Gear | Gear | Gear | Gear | Gear |
| Spindle speed | rpm | 12 000 | 8 000 | 12 000 | 6 000 | 6 000 | 6 000 | 6 000 | 6 000 |
| Motor power (cont./S3-25%) | kW | 7.5 / 15 | 11 / 18.5 | 7.5 / 15 | 15 / 18.5 | 15 / 18.5 | 22 / 26 | 22 / 26 | 22 / 26 |
| Spindle taper | - | BBT40 | BT50 | BBT40 | BT50 | BT50 | BT50 | BT50 | BT50 |
Feed Rate
左右滑動
| Items | Unit | V10 | V11 | V12 | V15 | V18 | V20 | V22 | V32 |
|---|---|---|---|---|---|---|---|---|---|
| Rapid traverse (X / Y / Z) | m/min | 24 / 24 / 20 | 24 / 24 / 20 | 24 / 24 / 20 | 18 / 18 / 16 | 16 / 16 / 14 | 14 / 14 / 12 | 14 / 14 / 12 | 14 / 14 / 10 |
| Cutting feed rate | mm/min | 1–8 000 | 1–8 000 | 1–8 000 | 1–5 000 | 1–5 000 | 1–5 000 | 1–5 000 | 1–5 000 |
| Motor power (X / Y / Z) | kW | 2.7 / 2.7 / 2.7 | 2.7 / 4.0 / 4.0 | 2.7 / 4.0 / 4.0 | 4.0 / 7.0 / 4.0 | 4.0 / 7.0 / 4.0 | 7.0 / 7.0 / 7.0 | 7.0 / 7.0 / 7.0 | 7.0 / 6.0 / 7.0 |
ATC
左右滑動
| Items | Unit | V10 | V11 | V12 | V15 | V18 | V20 | V22 | V32 |
|---|---|---|---|---|---|---|---|---|---|
| ATC type | - | Swing-Arm | Swing-Arm | Swing-Arm | Swing-Arm | Swing-Arm | Swing-Arm | Swing-Arm | Swing-Arm |
| Magazine capacity | pcs | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Max. tool Ø / adjacent empty | mm | 75 / 150 | 75 / 150 | 75 / 150 | 105 / 220 | 105 / 200 | 105 / 210 | 105 / 210 | 110 / 220 |
| Max. tool length | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Max. tool weight | kg | 7 | 15 | 7 | 15 | 15 | 15 | 15 | 15 |
| Tool shank | - | BT40 | BT50 | BT40 | BT50 | BT50 | BT50 | BT50 | BT50 |
| Pull stud | - | MAS 407 | MAS 407 | MAS 407 | MAS 407 | MAS 407 | MAS 407 | MAS 407 | MAS 407 |
Space & System Requirement
左右滑動
| Items | Unit | V10 | V11 | V12 | V15 | V18 | V20 | V22 | V32 |
|---|---|---|---|---|---|---|---|---|---|
| Pneumatic pressure | kgf/cm² | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Electrical power consumption | kVA | 35 | 35 | 35 | 35 | 45 | 50 | 50 | 50 |
| Machine net weight | kg | 7 900 | 8 000 | 8 100 | 14 000 | 16 000 | 22 000 | 24 500 | 27 000 |
V10
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4"controller |
| 2 | 12000 rpm, BBT40, direct drive spindle |
| 3 | 24T, BBT40, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Coolant tank & coolant flushing system |
| 14 | Spindle oil cooler |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45 & RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80M80A 10.4" controller |
| 2 | Heidenhain TNC620 |
| 3 | 12000 rpm, BBT40, belt type spindle |
| 4 | 32T, 40T, BT40 |
| 5 | Ball screw cooling for X/Y axis |
| 6 | Oil skimmer |
| 7 | Oil mist cutting device |
| 8 | Oil mist collector |
| 9 | Linear scales（3 axes） |
| 10 | Workpiece measurement system |
| 11 | Tool length measurement system |
| 12 | The 4th axis rotary table |
| 13 | Steel belt type chip conveyor |
| 14 | Transformer |
| 15 | Tapping lubrication device |
| 16 | CE（CE area only） |
V11
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF controller |
| 2 | 8000 rpm, BT50, gear type spindle |
| 3 | 24T, BT50, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Coolant tank & coolant flushing system |
| 14 | Spindle oil cooler |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45 & RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80A 10.4" controller |
| 2 | 12000rpm, BT50, belt type spindle |
| 3 | 32T/ BT50 |
| 4 | Ball screw cooling for X/Y axis |
| 5 | Oil skimmer |
| 6 | Oil mist cutting device |
| 7 | Oil mist collector |
| 8 | Linear scales（3 axes） |
| 9 | Workpiece measurement system |
| 10 | Tool length measurement system |
| 11 | The 4th axis rotary table |
| 12 | Steel belt type chip conveyor |
| 13 | Transformer |
| 14 | Tapping lubrication device |
| 15 | CE（CE area only） |
V12
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4"controller |
| 2 | 12000 rpm, BBT40, direct drive spindle |
| 3 | 24T, BBT40, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Coolant tank & coolant flushing system |
| 14 | Manual Pulse Generator（MPG） |
| 15 | RJ45 & RS - 232C interface |
| 16 | Heat exchanger for electrical cabinet |
| 17 | Tool kits |
| 18 | Leveling blocks and bolts |
| 19 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80A 10.4"controller |
| 2 | Heidenhain TNC 620 |
| 3 | 6000 rpm, BT50, gear type spindle |
| 4 | 32T & 40T, BT40, BT50 |
| 5 | Ball screw cooling for X/Y axis |
| 6 | Oil skimmer |
| 7 | Oil mist cutting device |
| 8 | Oil mist collector |
| 9 | Linear scales（3 axes） |
| 10 | Workpiece measurement system |
| 11 | Tool length measurement system |
| 12 | The 4th axis rotary table |
| 13 | Steel belt type chip conveyor |
| 14 | Transformer |
| 15 | Tapping lubrication device |
| 16 | CE（CE area only） |
V15
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4"controller |
| 2 | 6000 rpm, BT50, gear type spindle |
| 3 | 24T, BT50, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Coolant tank & coolant flushing system |
| 14 | Chip auger for both sides of Y-axis |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45 & RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| 21 | Steel belt type chip conveyor |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80A 10.4" controller |
| 2 | Heidenhain TNC 620 |
| 3 | 8000rpm, BT50, belt type spindle |
| 4 | 32T, BT50 |
| 5 | Ball screw cooling for X/Y axis |
| 6 | Oil skimmer |
| 7 | Oil mist cutting device |
| 8 | Oil mist collector |
| 9 | Linear scales（3 axes） |
| 10 | Workpiece measurement system |
| 11 | Tool length measurement system |
| 12 | The 4th axis rotary table |
| 13 | Transformer |
| 14 | Tapping lubrication device |
| 15 | CE（CE area only） |
V18
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4"controller |
| 2 | 6000 rpm, BT50, gear type spindle |
| 3 | 24T, BT50, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Steel belt type chip conveyor |
| 11 | Working lamp |
| 12 | Indication lamp |
| 13 | Coolant tank & coolant flushing system |
| 14 | Washing gun & air gun |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45 & RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80A 10.4"controller |
| 2 | Heidenhain TNC 620 |
| 3 | 8000rpm, BT50, belt type spindle |
| 4 | 32T, BT50, arm type ATC |
| 5 | Ball screw cooling for X/Y axis |
| 6 | Oil skimmer |
| 7 | Oil mist cutting device |
| 8 | Oil mist collector |
| 9 | Linear scales（3 axes） |
| 10 | Workpiece measurement system |
| 11 | Tool length measurement system |
| 12 | The 4th axis rotary table |
| 13 | Scraper type chip conveyor |
| 14 | Transformer |
| 15 | Coolant through tool adapter |
| 16 | Tapping lubrication device |
| 17 | CE（CE area only) |
V20
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4" |
| 2 | 6000 rpm, BT50, gear type spindle |
| 3 | 24T, BT50, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Steel belt type chip conveyor |
| 11 | Working lamp |
| 12 | Indication lamp |
| 13 | Coolant tank & coolant flushing system |
| 14 | Washing gun & air gun |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45 & RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80 controller |
| 2 | Heidenhain TNC 620 |
| 3 | 32T, BT50, arm type ATC |
| 4 | Ball screw cooling for X/Y axis |
| 5 | Oil skimmer |
| 6 | Oil mist cutting device |
| 7 | Oil mist collector |
| 8 | Linear scales（3 axes） |
| 9 | Workpiece measurement system |
| 10 | Tool length measurement system |
| 11 | The 4th axis rotary table |
| 12 | Transformer |
| 13 | Tapping lubrication device |
| 14 | CE（CE area only） |
V22
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4" controller |
| 2 | 6000 rpm, BT50, gear type spindle |
| 3 | 24T, BT50, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Steel belt type chip conveyor |
| 11 | Working lamp |
| 12 | Indication lamp |
| 13 | Washing gun & air gun |
| 14 | Coolant tank & coolant flushing system |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45& RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80A 10.4"controller |
| 2 | Heidenhain TNC 620 |
| 3 | 32T, BT50, arm type ATC |
| 4 | Ball screw cooling for X/Y axis |
| 5 | Oil skimmer |
| 6 | Oil mist cutting device |
| 7 | Oil mist collector |
| 8 | Linear scales（3 axes） |
| 9 | Workpiece measurement system |
| 10 | Tool length measurement system |
| 11 | The 4th axis rotary table |
| 12 | Transformer |
| 13 | Tapping lubrication device |
| 14 | CE（CE area only） |
V32
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4"controller |
| 2 | 6000 rpm, BT50, gear type spindle |
| 3 | 24T, BT50, armless type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle cooler |
| 7 | Cutting coolant system |
| 8 | Centralized automatic lubrication system（oil） |
| 9 | Fully enclosed splash guard |
| 10 | Steel belt type chip conveyor |
| 11 | Working lamp |
| 12 | Indication lamp |
| 13 | Washing gun & air gun |
| 14 | Coolant tank & coolant flushing system |
| 15 | Manual Pulse Generator（MPG） |
| 16 | RJ45 & RS - 232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | Tool kits |
| 19 | Leveling blocks and bolts |
| 20 | Operation manuals |
| No | Optional Accessories |
|---|---|
| 1 | MITSUBISHI M80A 10.4" controller |
| 2 | Heidenhain TNC 620 |
| 3 | 32T, BT50, arm type ATC |
| 4 | Ball screw cooling for X/Y axis |
| 5 | Oil skimmer |
| 6 | Oil mist cutting device |
| 7 | Oil mist collector |
| 8 | Linear scales（3 axes） |
| 9 | Workpiece measurement system |
| 10 | Tool length measurement system |
| 11 | The 4th axis rotary table |
| 12 | Transformer |
| 13 | Tapping lubrication device |
| 14 | CE（CE area only） |
