The Takumi H Series machining centers are designed for high dynamic and accuracy as demonstrated in both surface finish quality and consistent precision.
Outstanding ladder structure on the beam
The bridge utilizes a “ladder design” head casting and saddle which increases rigidity, reduces overhang and eliminates head deflection. The Y-axis cross rail saddle carries a constant weight, allowing for faster cutting while maintaining excellent part finish.
High Speed Built-in Spindle
The high-power built-in spindle limits vibration, noise and power loss during high speeds to achieve superior part finish. The helical cooling channel design minimiz-es thermal distortion and enables precision over extended cycle times.

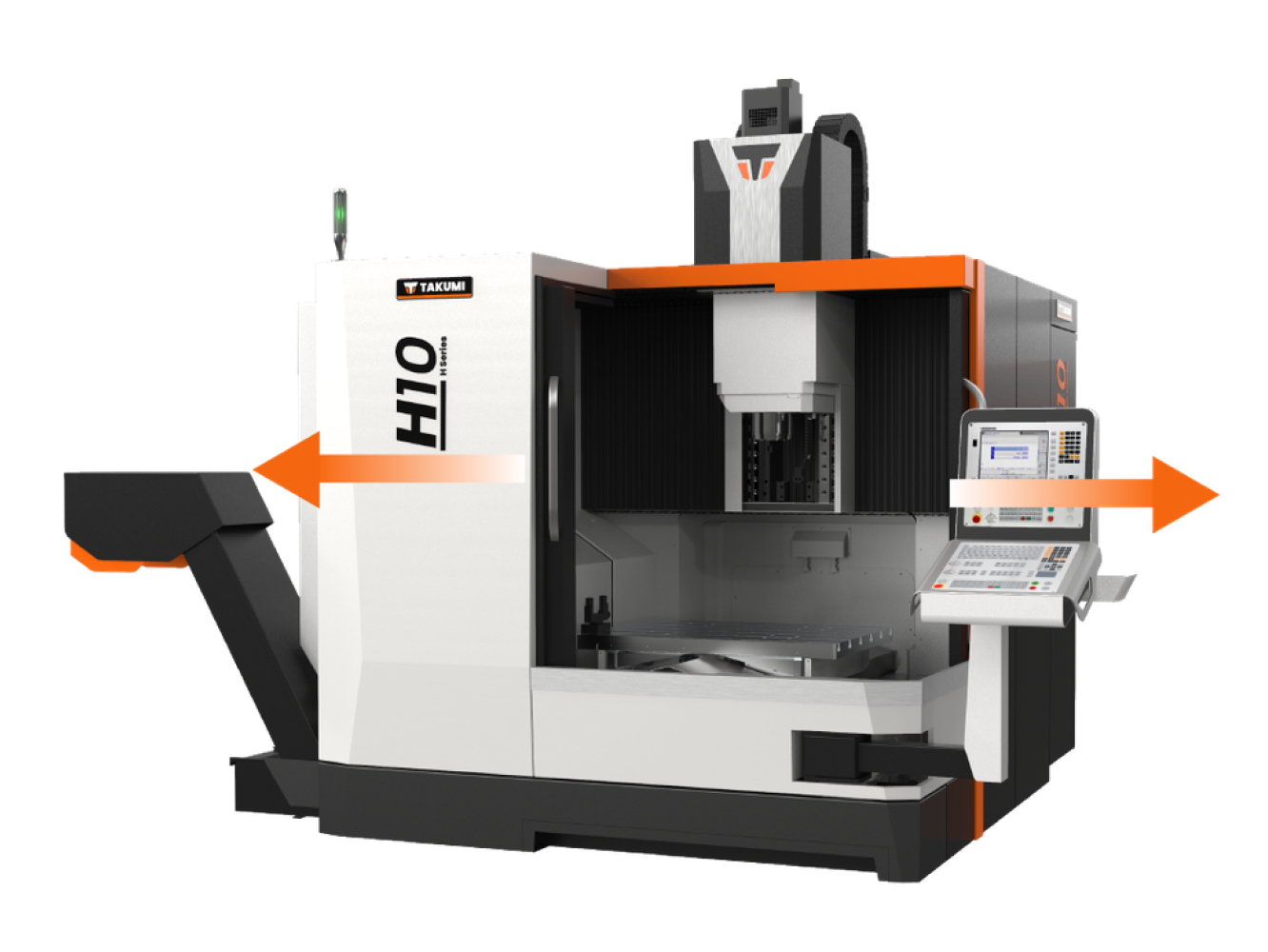

Two Doors Opening
Large door opening to the working area gives the operator impressive freedom and handling space.
H Series
Intelligent Spindle Thermal
Compensation Technology
TAKUMI’s unique spindle thermal compensation technology minimizes the heat and compensates for thermal expansion, which ensures better surface finish over extended cycle times.
Machine warm-up is not needed
High precision cutting performance is guaranteed
High processing stability over continuous runs
Save money and reduce the time and cost on cutting workpieces.
Travel
| Items | Unit | H6 | H10 | H12E | H16 |
|---|---|---|---|---|---|
| X axis | mm | 600 | 1020 | 1250 | 1600 |
| Y axis | mm | 600 | 700 | 950 | 1300 |
| Z axis | mm | 350 | 500 | 580 | 700 |
| Distance from spindle nose to table | mm | 120- 470 | 180 - 680 | 200 - 780 | 160 - 860 |
| Distance between columns | mm | 680 | 1080 | 1060 | 1500 |
Table
| Items | Unit | H6 | H10 | H12E | H16 |
|---|---|---|---|---|---|
| Dimension | mm | 600 x 600 | 1050 x 700 | 1360 x 960 | 1900 x 1300 |
| Max. load | kg | 500 | 800 | 2000 | 6000 |
| T-slot （width x pitch x number） | mm | 14 x 100 x 6 | 18 x 125 x 6 | 22 x 160 x 6 | 22 x 160 x 8 |
Spindle
| Items | Unit | H6 | H10 | H12E | H16 |
|---|---|---|---|---|---|
| Spindle type | - | Built-in | Direct-drive | Direct drive | Direct-drive |
| Spindle speed | rpm | 36000 | 15000 | 15000 | 15000 |
| Motor power (Fanuc control) | kW | 12/15 （cont./S6-10%） | 15 / 18.5 (Cont./S3-25%) | 15 / 18.5 (Cont./S3-25%) | 15 / 18.5 (Cont./S3-25%) |
| Spindle taper | - | HSK-E40 | BBT40 | BBT40 | BBT40 |
Feed Rate
| Items | Unit | H6 | H10 | H12E | H16 |
|---|---|---|---|---|---|
| Rapid traverse（X / Y / Z） | m/min | 30 / 30 / 30 | 32 / 32 / 32 | 36 / 36 / 36 | 30 / 30 / 30 |
| Cutting feed rate | mm/min | 20000 | 20000 | 20000 | 20000 |
| Motor power （X / Y / Z） | kW | 1.6 / 1.6 / 3.0 | 4.5 / 4.5 / 4.5 | 7 / 4 / 4 | 9 / 6 / 6 |
ATC
| Items | Unit | H6 | H10 | H12E | H16 |
|---|---|---|---|---|---|
| ATC type | - | Umbrella | Umbrella | Umbrella type | Umbrella |
| Magazine capacity | pcs | 20 | 16 | 16 | 20 |
| Max. tool diameter / next pocket empty | mm | 75 / 100 | 105 / 120 | 105 / 120 | 120 / 150 |
| Max. tool length | mm | 200 | 270 | 270 | 300 |
| Max. tool weight | kg | 1.5 | 3 | 3 | 7 |
| Tool shank | - | HSK-E40 | BBT40 | BBT40 | BBT40 |
| Pull stud | - | DIN 69872 | MAS 1 | - | MAS 1 |
Space & System Requirement
| Items | Unit | H6 | H10 | H12E | H16 |
|---|---|---|---|---|---|
| Pneumatic pressure | kgf/cm² | 6 | 6 | 6 | 6 |
| Electrical power consumption | kVA | 30 | 50 | 60 | 75 |
| Machine net weight | kg | 5500 | 9100 | - | 20000 |
| Max. floor space （W x L x H） | mm | 2430 x 2310 x 2660 | 3400 x 4300 x 3050 | 4000 x 4000 x 3200 | 3300 x 4360 x 3980 |
H6
| No. | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, Type0, 15" |
| 2 | 36000 rpm, HSK-E40, built-in type spindle |
| 3 | 20T, HSK-40, umbrella type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Coolant tank |
| 7 | Spindle oil cooler |
| 8 | Automatic centralized lubrication system |
| 9 | Grease type lubrication system |
| 10 | 3-axis absolute encoder motors |
| 11 | Full enclosure splash guard |
| 12 | Indication lamp |
| 13 | Working lamp |
| 14 | Manual pulse generator (MPG) |
| 15 | Ethernet card |
| 16 | Air conditioner for electrical cabinet |
| 17 | Oil skimmer |
| 18 | Tool kits |
| 19 | Anchor bolts, leveling blocks and bolts |
| 20 | Operation manuals |
| 21 | One-year machine warranty（Spindle warranty upon spindle manufacturer） |
| 22 | Controller warranty（FANUC - 24 months from shipping date） |
| No. | Optional Accessories |
|---|---|
| 1 | Siemens One, 15" |
| 2 | Heidenhain TNC7, 24" |
| 3 | Mitsubishi M830VS, 15" |
| 4 | 42000rpm, HSK-40, Built-in type spindle |
| 5 | Spindle thermal compensation system |
| 6 | Oil mist device |
| 7 | Oil mist collector |
| 8 | 3-axis linear scales |
| 9 | Tool length measurement system |
| 10 | Workpiece measurement system |
| 11 | Transformer |
| 12 | CE(CE area only） |
| 13 | Cutting Coolant Chiller |
H10
| No. | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, Type0, 15" |
| 2 | 15000rpm, BBT40, built - in type spindle |
| 3 | 30T, BBT40, umbrella type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Centralized automatic lubrication system（oil） |
| 8 | 3 axes absolute encoder motors |
| 9 | Fully enclosed splash guard |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Oil skimmer |
| 14 | Coolant tank & coolant flushing system |
| 15 | Manual pulse generator（MPG） |
| 16 | Ethernet |
| 17 | Air conditioner for electrical cabinet |
| 18 | Tool kits |
| 19 | Anchor bolts, leveling blocks and bolts |
| 20 | Operation manuals |
| 21 | One - year machine warranty （Spindle warranty upon spindle manufacturer） |
| 22 | Controller warranty （Controller warranty upon controller manufacturer） |
| No. | Optional Accessories |
|---|---|
| 1 | HEIDENHAIN TNC7, 24" |
| 2 | MITSUBISHI M830VS, 15" |
| 3 | Siemens One, 15" |
| 4 | 20000 rpm, HSK63A, Built - in type spindle |
| 5 | 24000rpm, HSK63A, Built - in type spindle（IBAG） |
| 6 | 36000rpm, HSK-E40, Built - in type spindle |
| 7 | Coolant through spindle |
| 8 | Spindle thermal compensation system（For IBAG spindle only） |
| 9 | Ball screw cooling system |
| 10 | Oil mist device |
| 11 | Oil mist collector |
| 12 | Linear scales（3 axes） |
| 13 | Workpiece measurement system |
| 14 | Tool length measurement system |
| 15 | Rotary table（The 4th / 5th axis） |
| 16 | Steel belt type chip conveyor |
| 17 | Scraper type chip conveyor |
| 18 | Transformer |
| 19 | CE（CE area only） |
| 20 | Cutting Coolant Chiller |
H12E
| No. | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, Type0, 15" Controller |
| 2 | 15000rpm, direct drive spindle, BBT |
| 3 | 16T, umbrella type ATC, BBT40 |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Automatic centralized lubrication system |
| 8 | Fully enclosed splash guard |
| 9 | 3-axes absolute encoder motors |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Oil skimmer |
| 14 | Coolant tank & flushing system |
| 15 | Manual pulse generator ( MPG ) |
| 16 | Air conditioner for electrical cabinet |
| 17 | Tool kits |
| 18 | Leveling bolts & pads |
| 19 | Operation manuals |
| 20 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 21 | Controller warranty (Controller warranty upon controller manufacturer) |
| No. | Optional Accessories |
|---|---|
| 1 | HEIDENHAIN TNC7, 24"Controller |
| 2 | Siemens One 15" |
| 3 | Mitsubishi M830VS, 15" |
| 4 | 20000rpm, built-in spindle |
| 5 | 24000rpm, built-in spindle |
| 6 | Coolant through spindle (30bar) |
| 7 | Ball screw cooling system |
| 8 | Oil mist device |
| 9 | Oil mist collector |
| 10 | 3-axis linear scales |
| 11 | Workpiece measurement system |
| 12 | Tool length measurement system |
| 13 | Rotary table (4th / 5th axes) |
| 14 | Steel belt type chip conveyor |
| 15 | Scraper type chip conveyor |
| 16 | Spindle thermal compensation system |
| 17 | Transformer |
| 18 | CE mark (CE region only) |
H16
| No. | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus controller |
| 3 | 20T, BBT40, umbrella type ATC |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Centralized automatic lubrication system（oil） |
| 8 | 3 axes absolute encoder motors |
| 9 | Fully enclosed splash guard |
| 10 | Working lamp |
| 11 | Indication lamp |
| 12 | Washing gun & air gun |
| 13 | Oil skimmer |
| 14 | Coolant tank & coolant flushing system |
| 15 | Steel belt type chip conveyor |
| 16 | Manual pulse generator（MPG） |
| 17 | Ethernet |
| 18 | Air conditioner for electrical cabinet |
| 19 | Tool kits |
| 20 | Anchor bolts, leveling blocks and bolts |
| 21 | Operation manuals |
| 22 | One - year machine warranty （Spindle warranty upon spindle manufacturer） |
| 23 | Controller warranty （Controller warranty upon controller manufacturer） |
| No. | Optional Accessories |
|---|---|
| 1 | HEIDENHAIN TNC620/TNC640 controller |
| 2 | MITSUBISHI M830 controller |
| 3 | FANUC 31iMB controller |
| 4 | 12000 rpm, direct - drive type spindle |
| 5 | 20000rpm, built - in type spindle |
| 6 | 24000rpm, built - in type spindle |
| 7 | 30 / 32T, arm type ATC |
| 8 | Coolant through spindle |
| 9 | Spindle thermal compensation system（For IBAG spindle only） |
| 10 | Ball screw cooling system |
| 11 | Oil mist device |
| 12 | Oil mist collector |
| 13 | Linear scales（3 axes） |
| 14 | Workpiece measurement system |
| 15 | Tool length measurement system |
| 16 | Rotary table（The 4th / 5th axis） |
| 17 | Scraper type chip conveyor |
| 18 | Transformer |
| 19 | CE（CE area only） |
| 20 | Cutting Coolant Chiller |
