VT500
VT500

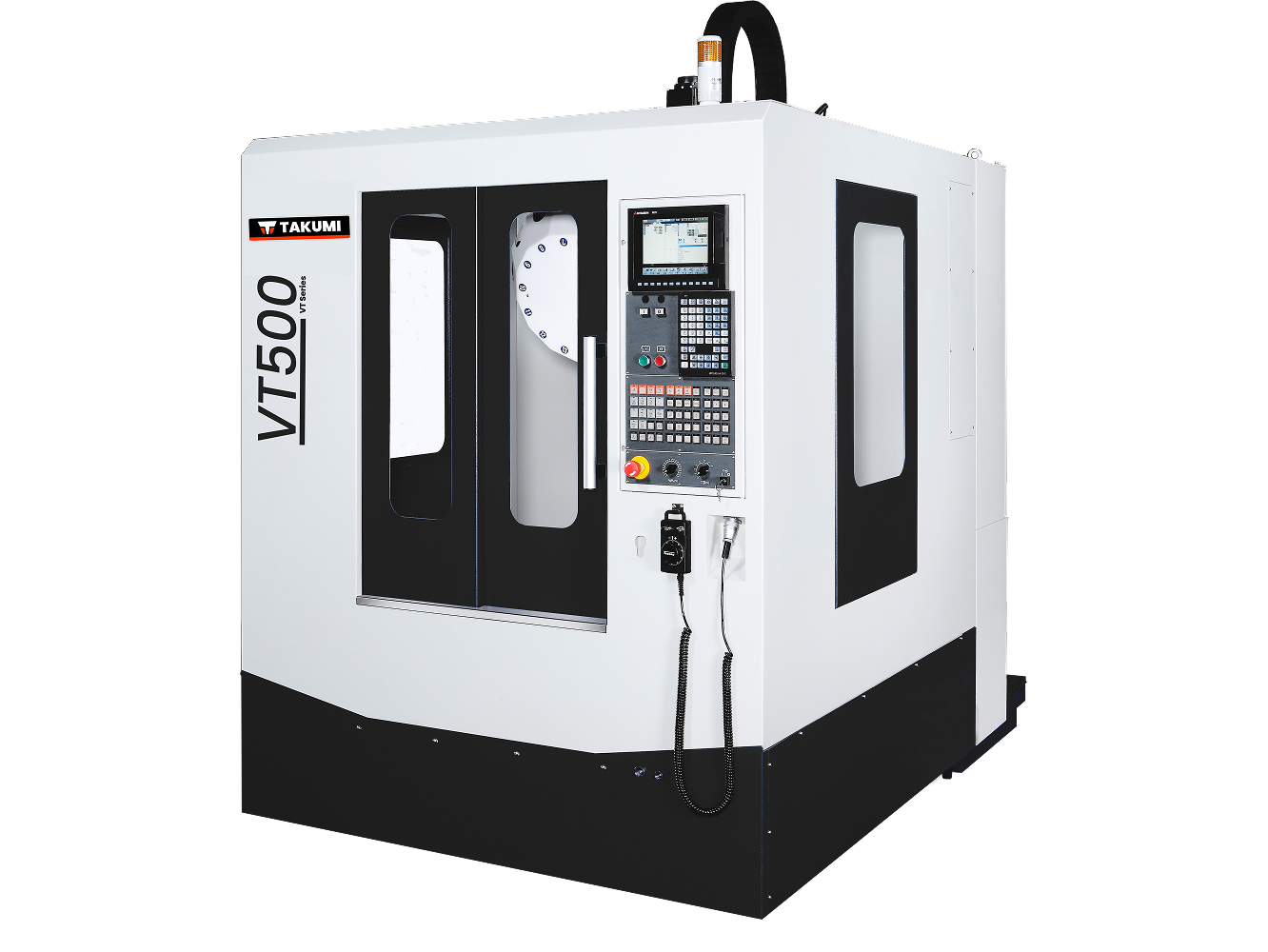

The Takumi VT Series, drill and tapping center machining center, is designed for light and fast machining of small to medium parts and high precision dies and molds. Thanks to the high accuracy and speed, VT Series enables a wider range of machining applications such as 3C,electronic and automobile industry. The advantage of compact footprint enhance the space utility of the factory tremendously.
Small footprint
The dimension of the machine on the front side is only 1,700mm, which increases the productivity by saving factory floor space.
Stable ATC system
With the mechanical tool changing design, the tool change time has been optimized to reduce non cutting time.
The tool change is synchronize with the movement of Z axis, which assures high speed and high produtivity.
Travel
| Items | Unit | VT500 |
|---|---|---|
| X axis | mm | 500 |
| Y axis | mm | 400 |
| Z axis | mm | 320 |
| Distance from spindle nose to table | mm | 160-480 (short) 260-580 (long) |
Table
| Items | Unit | VT500 |
|---|---|---|
| Dimension | mm | 650 × 400 |
| Max. load | kg | 250 |
| T-slot（width × pitch × number） | mm | 14 × 125 × 3 |
Spindle
| Items | Unit | VT500 |
|---|---|---|
| Spindle type | - | Direct-drive |
| Spindle speed | rpm | 12 000 |
| Motor power（cont./S3-25%） | kW | 3.7 / 5.5 |
| Spindle taper | - | BT30 |
Feed Rate
| Items | Unit | VT500 |
|---|---|---|
| Rapid traverse（X / Y / Z） | m/min | 48 / 48 / 48 |
| Cutting feed rate | mm/min | 10 000 |
| Motor power（X / Y / Z） | kW | 1.5 / 1.5 / 2.2 |
ATC
| Items | Unit | VT500 |
|---|---|---|
| ATC type | - | Tool Turret |
| Magazine capacity | pcs | 21 |
| Max. tool diameter | mm | 80 |
| Max. tool length | mm | 150 |
| Max. tool weight | kg | 3 |
Space & System Requirement
| Items | Unit | VT500 |
|---|---|---|
| Pneumatic pressure | kgf/cm² | 6 |
| Electrical power consumption | kVA | 20 |
| Machine net weight | kg | 2 500 |
| No | Standard Accessories |
|---|---|
| 1 | Fanuc 0iMF-Plus, Type0 10.4” |
| 2 | 12000 rpm, BT30, Direct drive |
| 3 | 21 tools, BT30, Turret |
| 4 | Spindle air curtain |
| 5 | Cutting coolant system |
| 6 | Flush coolant system |
| 7 | Manual pulse generator (MPG) |
| 8 | Full splash guard |
| 9 | Working lamp |
| 10 | Indication lamp |
| 11 | Tool package |
| 12 | Heat exchanger in electrical cabinet (Fan type) |
| 13 | Leveling blocks and bolts |
| 14 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 15 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | 20000 rpm, BT30, Direct drive |
| 2 | Long column |
| 3 | Spindle oil cooler |
| 4 | Full enclosed splash guard |
| 5 | Chain type chip conveyor |
| 6 | Workingpiece measurement system |
| 7 | Tool length measurement system |
| 8 | Rotary table |
| 9 | CNC tilting rotary table (4+1 axis) |
| 10 | Transformer |
| 11 | Coolant through spindle (20bar) |
| 12 | Data Server 2GB |
