H22S、H22T、H27S、H32S、H32T、H42S

The Takumi H Series machining centers are designed for high dynamic and accuracy as demonstrated in both surface finish quality and consistent precision.

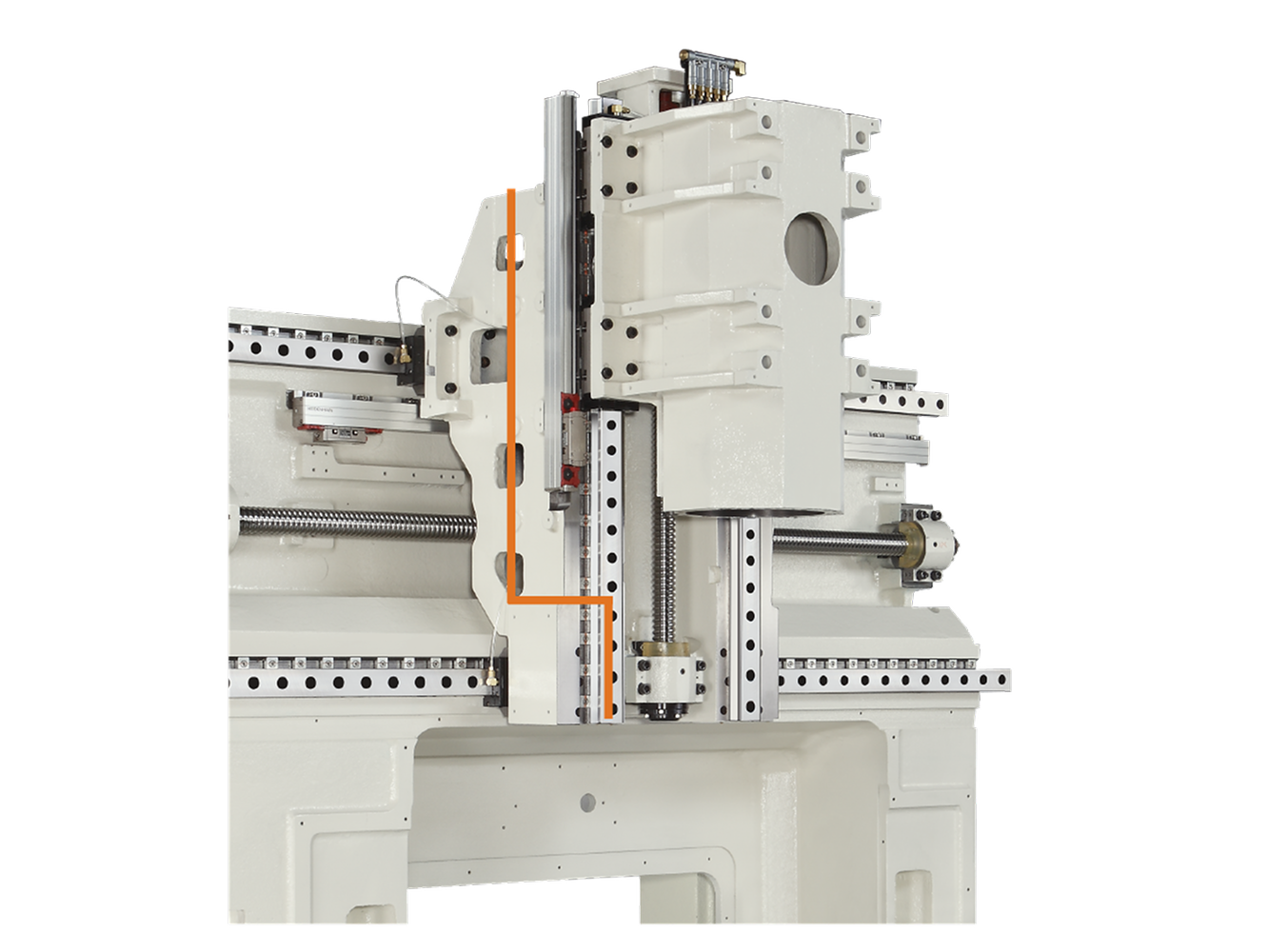

Outstanding ladder structure on the beam

The bridge utilizes a “ladder design” head casting and saddle which increases rigidity, reduces overhang and eliminates head deflection. The Y-axis cross rail saddle carries a constant weight, allowing for faster cutting while maintaining excellent part finish.

High Rigidity Rotating Nuts Design (X-axis)

With the rotating nuts design, the screw remains fixed and the nut is rotated to achieve linear motion. This not only allows greater speeds, but also greater strokes.

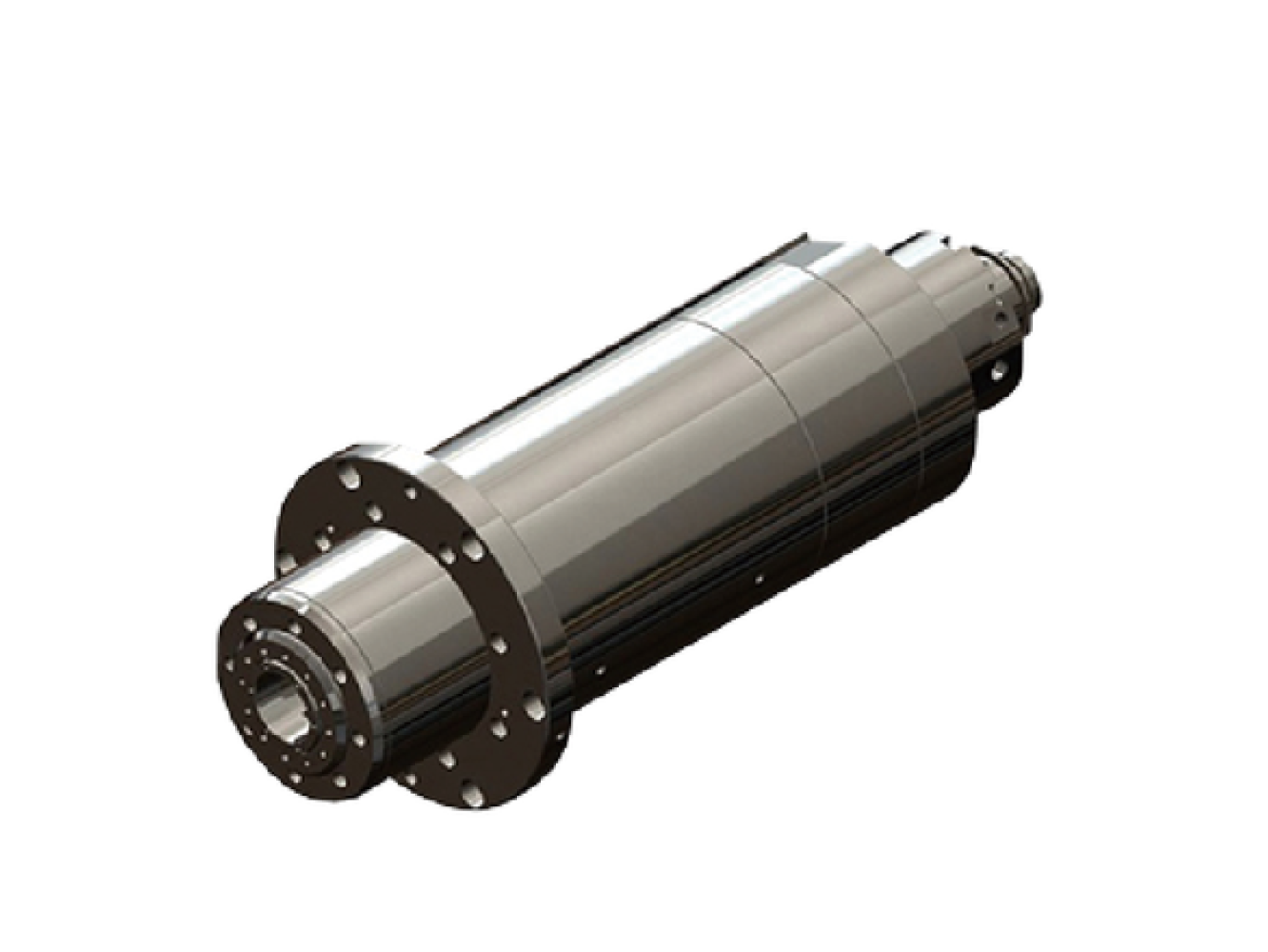

High Speed Built-in Spindle

The high-power built-in spindle limits vibration, noise and power loss during high speeds to achieve superior part finish. The helical cooling channel design minimizes thermal distortion and enables precision over extended cycle times.

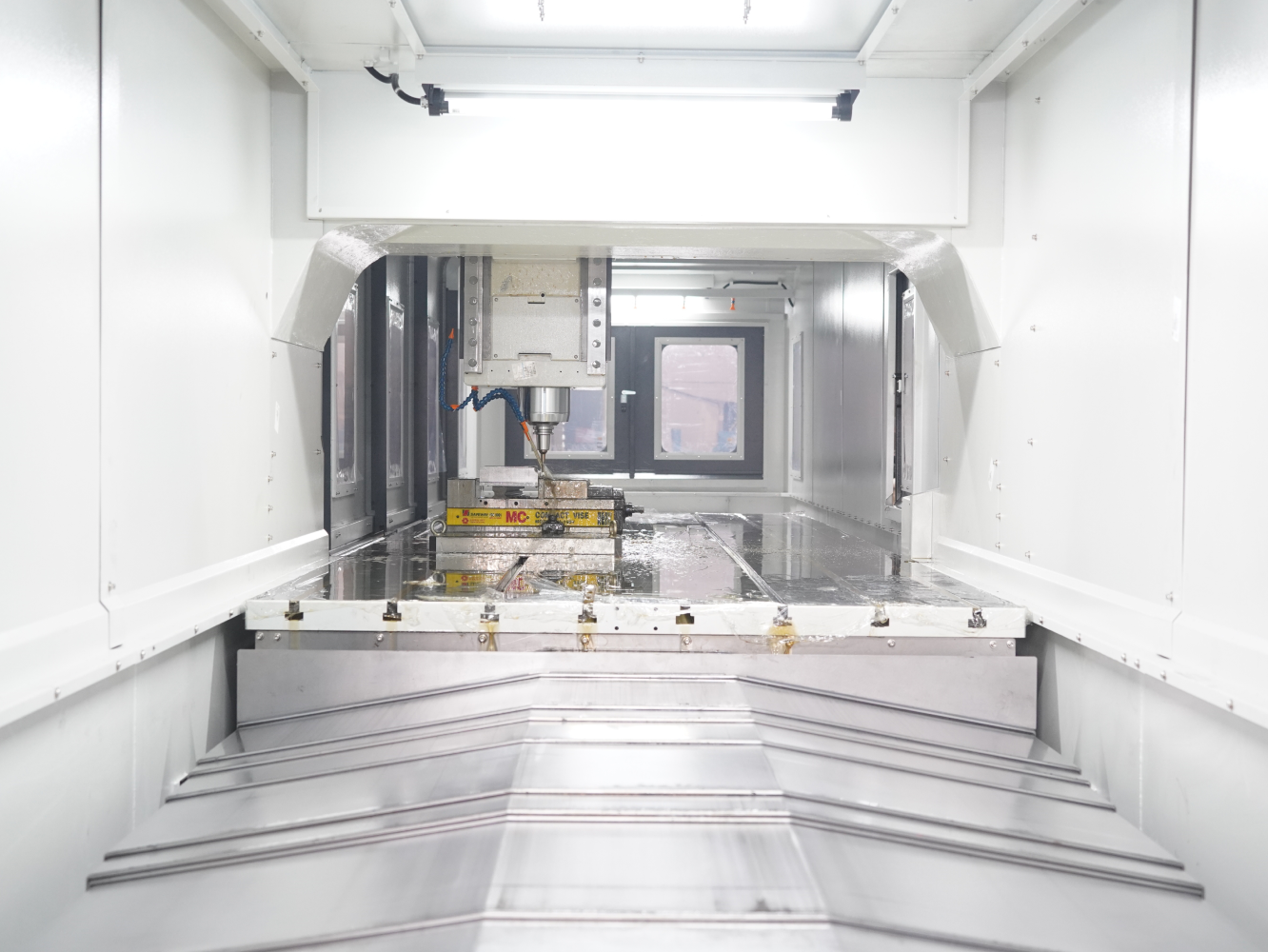

Rear Side Flushing Coolant System

The design of the sloping way covers, tilt of the bed casting and the flushing coolant system provides excellent chip removal.

Travel

Items	Unit	H22S	H22T	H27S	H32S	H32T	H42S
X axis	mm	2200	2200	2700	3200	3200	4200
Y axis	mm	1600	2200	1600	1600	2200	1600
Z axis	mm	800	800	800	800	800	800
Distance from spindle nose to table	mm	150-950	150-950	150-950	150-950	150-950	150-950
Distance between columns	mm	1750	2350	1750	1750	2350	1750

Table

Items	Unit	H22S	H22T	H27S	H32S	H32T	H42S
Dimension	mm	2400 x 1600	2400 x 2100	2860 x 1600	3320 x 1600	3320 x 2100	4240 x 1600
Max. load	kg	8000	8000	7500	8500	8500	9000
T-slot （width x pitch x number）	mm	22 x 200 x 8	22 x 200 x 10	22 x 200 x 8	22 x 200 x 8	22 x 200 x 10	22 x 200 x 8

Spindle

Items	Unit	H22S	H22T	H27S	H32S	H32T	H42S
Spindle type	-	Direct drive	Direct drive	Direct drive	Direct drive	Direct drive	Direct drive
Spindle speed	rpm	12000	12000	12000	12000	12000	12000
Motor power （cont. /S3-25%(Fanuc control)	kW	22 / 35	22 / 35	22 / 35	22 / 35	22 / 35	22 / 35
Spindle taper	-	BBT50	BBT50	BBT50	BBT50	BBT50	BBT50

Feed Rate

Items	Unit	H22S	H22T	H27S	H32S	H32T	H42S
Rapid traverse（X / Y / Z）	m/min	20 / 20 / 20	20 / 16 / 20	16 / 20 / 20	16 / 20 / 20	16 / 16 / 20	20 / 20 / 20
Motor power （X / Y / Z）	kW	9.0 / 9.0 / 6.0	9.0 / 9.0 / 6.0	9.0 / 9.0 / 6.0	9.0 / 9.0 / 6.0	9.0 / 9.0 / 6.0	9.0 / 9.0 / 6.0

ATC

Items	Unit	H22S	H22T	H27S	H32S	H32T	H42S
ATC type	-	Armless	Armless	Armless	Armless	Armless	Armless
Magazine capacity	pcs	20	20	20	20	20	20
Max. tool diameter / next pocket empty	mm	105 / 150	105 / 150	105 / 150	105 / 150	105 / 150	105 / 150
Max. tool length	mm	300	300	300	300	300	300
Max. tool weight	kg	7	7	7	7	7	7
Tool shank	-	BBT50	BBT50	BBT50	BBT50	BBT50	BBT50
Pull stud	-	MAS 1	MAS 1	MAS 1	MAS 1	MAS 1	MAS 1

Space & System Requirement

Items	Unit	H22S	H22T	H27S	H32S	H32T	H42S
Pneumatic pressure	kgf/cm²	6	6	6	6	6	6
Electrical power consumption	kVA	75	75	75	75	75	75
Machine net weight	kg	27000	31000	29000	33000	37000	40000
Max. floor space （W x L x H）	mm	4860 x 6740 x 3950	5460 x 6740 x 3950	-	4860 x 8310 x 3950	5460 x 8310 x 3950	4860 x 10310 x 3950

H22S

No	Standard Accessories
1	FANUC 0iMF Plus, Type0, 15" controller
2	12000 rpm, BBT50, Direct-drive type spindle
3	20T, BBT0, armless type ATC
4	Spindle air blast
5	Cutting air blast
6	Spindle oil cooler
7	Cutting coolant system
8	Centralized automatic lubrication system（oil）
9	3 axes absolute encoder motors
10	Fully enclosed splash guard
11	Working lamp
12	Indication lamp
13	Washing gun & air gun
14	Oil skimmer
15	Coolant tank & coolant flushing system
16	Steel belt type chip conveyor
17	Manual pulse generator（MPG）
18	Ethernet & RS-232C interface
19	Air conditioner for electrical cabinet
20	Tool kits
21	Anchor bolts, leveling blocks and bolts
22	Operation manuals
23	One-year machine warranty（Spindle warranty depends upon spindle manufacturer）
24	Controller warranty（Controller warranty depends upon controller manufacturer）

No	Optional Accessories
1	HEIDENHAIN TNC7, 24" controller
2	Siemens One controller
3	15000 rpm, BBT40, direct - drive type spindle
4	24000 rpm, HSK63A, built-in type spindle（IBAG）
5	30 / 32 / 48T, arm type ATC
6	Coolant through spindle (30/70 bar)
7	Spindle thermal compensation system(PT-100)
8	Ball screw cooling system
9	Oil mist device
10	Oil mist collector
11	Linear scales（3 axes）
12	Workpiece measurement system
13	Tool length measurement system
14	Scraper type chip conveyor
15	Transformer
16	CE（CE area only）

H22T

No	Standard Accessories
1	FANUC 0iMF Plus, Type0, 15" controller
2	12000 rpm, BBT50, Direct-drive type spindle
3	20T, BBT0, armless type ATC
4	Spindle air blast
5	Cutting air blast
6	Spindle oil cooler
7	Cutting coolant system
8	Centralized automatic lubrication system（oil）
9	3 axes absolute encoder motors
10	Fully enclosed splash guard
11	Working lamp
12	Indication lamp
13	Washing gun & air gun
14	Oil skimmer
15	Coolant tank & coolant flushing system
16	Steel belt type chip conveyor
17	Manual pulse generator（MPG）
18	Ethernet & RS-232C interface
19	Air conditioner for electrical cabinet
20	Tool kits
21	Anchor bolts, leveling blocks and bolts
22	Operation manuals
23	One-year machine warranty（Spindle warranty depends upon spindle manufacturer）
24	Controller warranty（Controller warranty depends upon controller manufacturer）

No	Optional Accessories
1	HEIDENHAIN TNC7, 24" controller
2	Siemens One controller
3	15000rpm, BBT40, Direct Drive Spindle
4	30 / 32 / 48T arm type ATC
5	Coolant through spindle (30/70 bar)
6	Spindle thermal compensation system(PT-100)
7	Ball screw cooling system
8	Oil mist device
9	Oil mist collector
10	Linear scales（3 axes）
11	Workpiece measurement system
12	Tool length measurement system
13	Scraper type chip conveyor
14	Transformer
15	CE（CE area only）

H32S

No	Standard Accessories
1	FANUC 0iMF Plus, Type0, 15" controller
2	12000 rpm, BBT50, Direct-drive type spindle
3	20T, BBT0, armless type ATC
4	Spindle air blast
5	Cutting air blast
6	Spindle oil cooler
7	Cutting coolant system
8	Centralized automatic lubrication system（oil）
9	3 axes absolute encoder motors
10	Fully enclosed splash guard
11	Working lamp
12	Indication lamp
13	Washing gun & air gun
14	Oil skimmer
15	Coolant tank & coolant flushing system
16	Steel belt type chip conveyor
17	Manual pulse generator（MPG）
18	Ethernet & RS-232C interface
19	Air conditioner for electrical cabinet
20	Tool kits
21	Anchor bolts, leveling blocks and bolts
22	Operation manuals
23	One-year machine warranty（Spindle warranty depends upon spindle manufacturer）
24	Controller warranty（Controller warranty depends upon controller manufacturer）

No	Optional Accessories
1	HEIDENHAIN TNC7, 24" controller
2	Siemens One controller
3	15000rpm, BBT40, Direct Drive Spindle
4	30 / 32 / 48T arm type ATC
5	Coolant through spindle (30/70 bar)
6	Spindle thermal compensation system (PT-100)
7	Ball screw cooling system
8	Oil mist device
9	Oil mist collector
10	Linear scales（3 axes）
11	Workpiece measurement system
12	Tool length measurement system
13	Scraper type chip conveyor
14	Transformer
15	CE（CE area only）

H32T

No	Standard Accessories
1	FANUC 0iMF Plus, Type0, 15" controller
2	12000 rpm, BBT50, Direct-drive type spindle
3	20T, BBT0, armless type ATC
4	Spindle air blast
5	Cutting air blast
6	Spindle oil cooler
7	Cutting coolant system
8	Centralized automatic lubrication system（oil）
9	3 axes absolute encoder motors
10	Fully enclosed splash guard
11	Working lamp
12	Indication lamp
13	Washing gun & air gun
14	Oil skimmer
15	Coolant tank & coolant flushing system
16	Steel belt type chip conveyor
17	Manual pulse generator（MPG）
18	Ethernet & RS-232C interface
19	Air conditioner for electrical cabinet
20	Tool kits
21	Anchor bolts, leveling blocks and bolts
22	Operation manuals
23	One-year machine warranty（Spindle warranty depends upon spindle manufacturer）
24	Controller warranty（Controller warranty depends upon controller manufacturer）

No	Optional Accessories
1	HEIDENHAIN TNC7, 24" controller
2	Siemens One controller
3	15000rpm, BBT40, Direct Drive Spindle
4	30 / 32 / 48T arm type ATC
5	Coolant through spindle (30/70 bar)
6	Spindle thermal compensation system (PT-100)
7	Ball screw cooling system
8	Oil mist device
9	Oil mist collector
10	Linear scales（3 axes）
11	Workpiece measurement system
12	Tool length measurement system
13	Scraper type chip conveyor
14	Transformer
15	CE（CE area only）
