VC0852、VC1000、VC1052、VC1200
VC0852、VC1000、VC1052、VC1200
The VC Series can handle a wide range of workpieces for all kind of applications thanks to a highly versatile control system that comes
with VC0852, VC1000, VC1052, VC1200, VC1500. The VC Series are designed for high rigidity, reliability and productivity, as demonstrated
in both surface finish quality and repeatable precision.

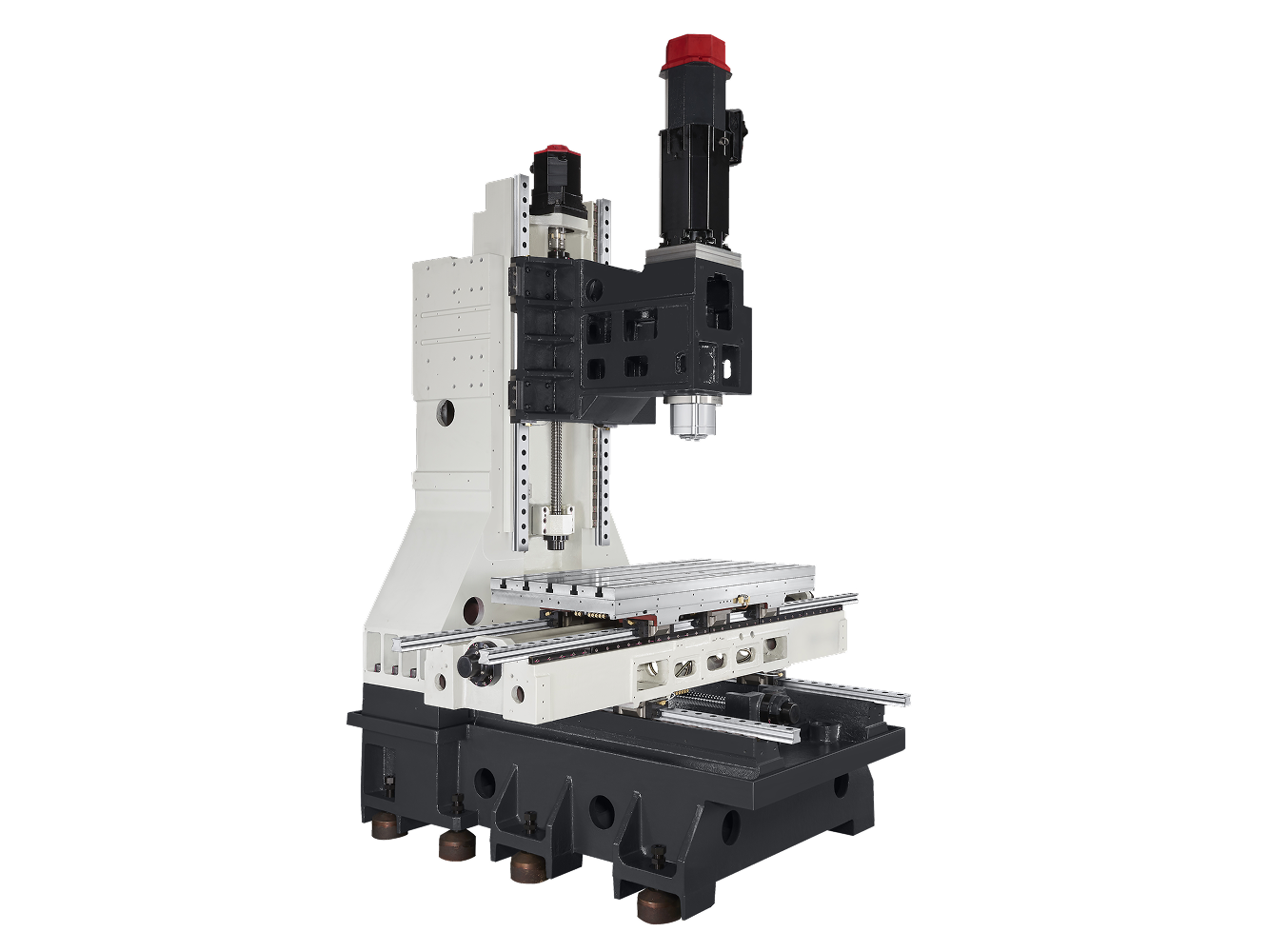

High rigidity structure
Bed, columns, saddle and other main castings are made of Meehanite grade cast iron and remove the internal stress by heat treatment to ensure the best structural stability and positioning accuracy.

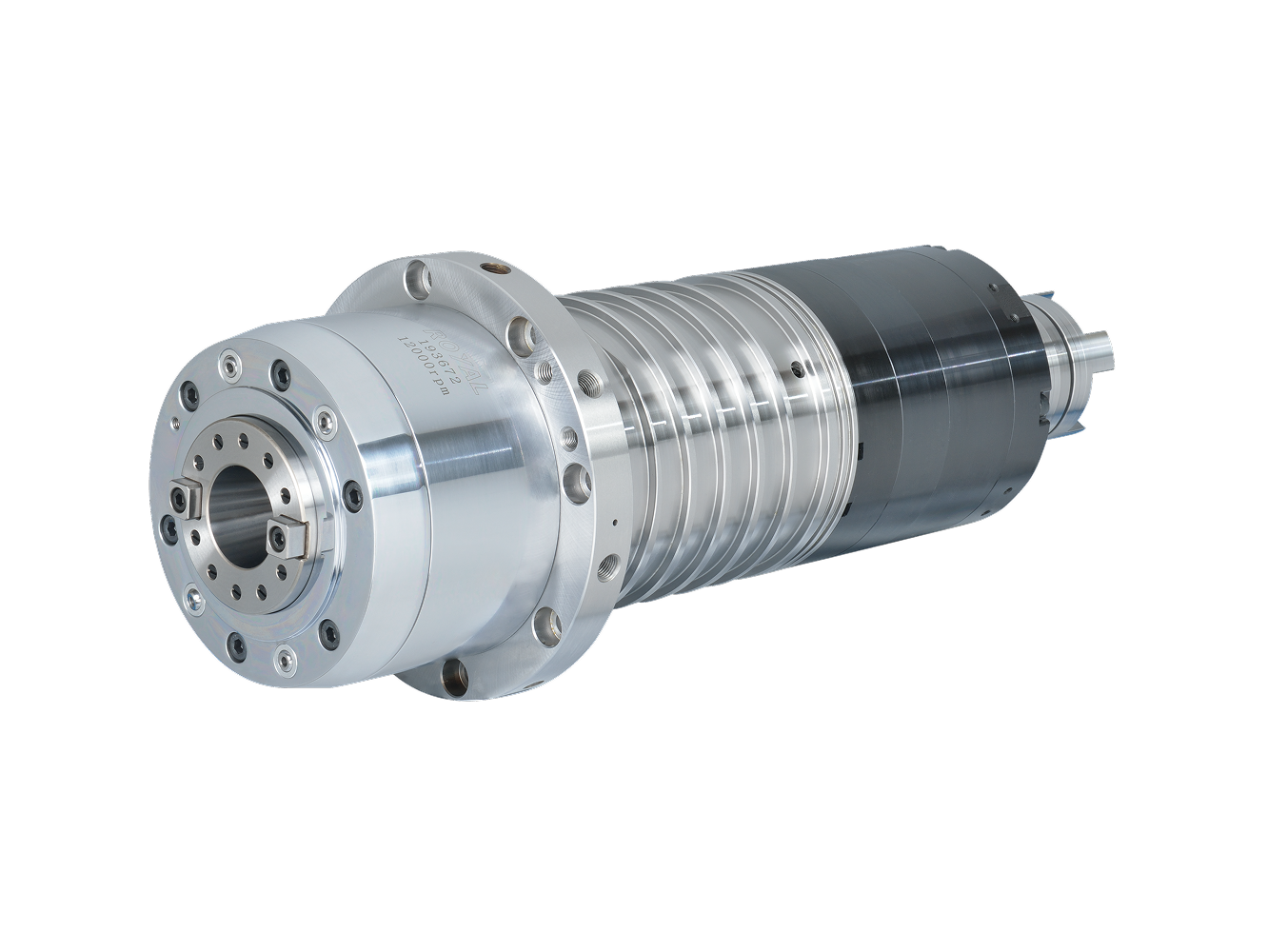

High speed direct drive spindle
The high-power direct drive spindle limits vibration, noise and power loss during high speed rotations to achieve superior part finish.
High speed, high productivity
Higher productivity is achieved by reducing non cutting time and improving the acceleration and deceleration times of all motion system axes.
Travel
| Items | Unit | VC0852 | VC1000 | VC1052 | VC1200 | VC1500 |
|---|---|---|---|---|---|---|
| X axis | mm | 860 | 1067 | 1060 | 1270 | 1524 |
| Y axis | mm | 520 | 610 | 520 | 660 | 762 |
| Z axis | mm | 610 | 610 | 610 | 610 | 610 |
| Distance from spindle nose to table | mm | 115-725 | 141-751 | 115-725 | 150-760 | 120-730 |
Table
| Items | Unit | VC0852 | VC1000 | VC1052 | VC1200 | VC1500 |
|---|---|---|---|---|---|---|
| Dimension | mm | 1000 × 520 | 1270 × 610 | 1160 × 520 | 1500 × 660 | 1680 x 762 |
| Max. table load | kg | 500 | 1000 | 650 | 1360 | 1360 |
| T-slot（width × pitch × number） | mm | 18 × 100 × 5 | 18 × 100 × 5 | 18 × 100 × 5 | 18 × 100 × 6 | 18 x 100 x 7 |
Spindle
| Items | Unit | VC0852 | VC1000 | VC1052 | VC1200 | VC1500 |
|---|---|---|---|---|---|---|
| Spindle type | - | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive |
| Spindle speed | rpm | 15 000 | 15 000 | 15 000 | 15 000 | 15 000 |
| Spindle motor power（cont./S3-25%） | kW | 9 / 15 | 9 / 15 | 9 / 15 | 9 / 15 | 9 / 15 |
| Spindle taper | - | BBT40 | BBT40 | BBT40 | BBT40 | BBT40 |
Feed Rate
| Items | Unit | VC0852 | VC1000 | VC1052 | VC1200 | VC1500 |
|---|---|---|---|---|---|---|
| Rapid traverse（X / Y / Z） | m/min | 36 / 36 / 24 (FANUC) | 36 / 36 / 24 | 36 / 36 / 24 (FANUC) | 36 / 36 / 24 | 36 / 36 / 24 |
| Cutting feed rate | mm/min | 12 000 | 12 000 | 12 000 | 12 000 | 12 000 |
| Motor power（X / Y / Z） | kW | 3.0 / 3.0 / 3.0 (FANUC) | 3.0 / 4.0 / 4.0 | 3.0 / 3.0 / 3.0 (FANUC) | 4.0 / 4.0 / 7.0 | 4.0 / 4.0 / 7.0 |
ATC
| Items | Unit | VC0852 | VC1000 | VC1052 | VC1200 | VC1500 |
|---|---|---|---|---|---|---|
| ATC type | - | Arm | Arm | Arm | Arm | Arm |
| Magazine capacity | pcs | 24 | 24 | 24 | 30 | 30 |
| Max. tool diameter / adjacent empty | mm | 75 / 125 | 75 / 125 | 75 / 125 | 75 / 125 | 75 / 125 |
| Max. tool length | mm | 300 | 300 | 300 | 300 | 300 |
| Max. tool weight | kg | 7 | 7 | 7 | 7 | 7 |
| Tool shank | - | BBT40 | BBT40 | BBT40 | BBT40 | BBT40 |
| Pull stud | - | MAS 407 | MAS 407 | MAS 407 | MAS 407 | MAS 407 |
Space & System Requirement
| Items | Unit | VC0852 | VC1000 | VC1052 | VC1200 | VC1500 |
|---|---|---|---|---|---|---|
| Pneumatic pressure | kgf/cm² | 6 | 6 | 6 | 6 | 6 |
| Electrical power consumption | kVA | 30 | 30 | 30 | 40 | 50 |
| Machine net weight | kg | 5 500 | 6 750 | 5 800 | 9 000 | 11000 |
VC0852
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, 10.4" controller |
| 2 | 15000rpm, BBT40, direct drive spindle |
| 3 | 24T, BBT40/CAT40/SK40, Arm type |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Automatic centralized lubrication system |
| 8 | Chip auger with lift up exhaust tube |
| 9 | Fully enclosed splash guard |
| 10 | Working light |
| 11 | Indication tower light |
| 12 | Coolant gun & air gun |
| 13 | Coolant flushing system |
| 14 | Coolant tank |
| 15 | Manual pulse generator ( MPG ) |
| 16 | Ethernet & RS-232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | 3-Axis absolute encoder motors |
| 19 | Tool kits |
| 21 | Leveling bolts & pads |
| 21 | Operation manuals |
| 22 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 23 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | Mitsubishi M80VA, 10.4"controller |
| 2 | Heidenhain TNC7, 15" controller |
| 3 | 32T, Arm type |
| 4 | Coolant through spindle (30bar) |
| 5 | Oil skimmer |
| 6 | Oil mist device |
| 7 | Oil mist collector |
| 8 | Air conditioner for electrical cabinet |
| 9 | Tool length measurement system |
| 10 | Workpiece measurement system |
| 11 | 4th/5th axis rotary table |
| 12 | Chain type chip conveyor |
| 13 | Scraper type chip conveyor |
| 14 | Transformer |
| 15 | Stablizer |
| 16 | Linear scales(X/Y/Z) |
| 17 | CE mark (CE region only) |
VC1000
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus 10.4" controller |
| 2 | 15000rpm, BBT40, direct drive spindle |
| 3 | 24T, BBT40/CAT40/SK40, Arm type |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Automatic centralized lubrication system |
| 8 | Chip auger with lift up exhaust tube |
| 9 | Fully enclosed splash guard |
| 10 | Working light |
| 11 | Indication tower light |
| 12 | Coolant gun & air gun |
| 13 | Coolant flushing system |
| 14 | Coolant tank |
| 15 | Manual pulse generator ( MPG ) |
| 16 | Ethernet & RS-232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | 3-Axis absolute encoder motors |
| 19 | Tool kits |
| 20 | Leveling bolts & pads |
| 21 | Operation manuals |
| 22 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 23 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | Mitsubishi M80A, 10.4" controller |
| 2 | Heidenhain TNC7, 24" controller |
| 3 | 40T, Arm type |
| 4 | 3-axis linear scale |
| 5 | Coolant through spindle (30bar) |
| 6 | Oil skimmer |
| 7 | Oil mist device |
| 8 | Oil mist collector |
| 9 | Air conditioner for electrical cabinet |
| 10 | Tool length measurement system |
| 11 | Workpiece measurement system |
| 12 | 4th/5th axis rotary table |
| 13 | Chain type chip conveyor |
| 14 | Scraper type chip conveyor |
| 15 | Transformer |
| 16 | Stablizer |
| 17 | CE mark (CE region only) |
VC1052
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, 10.4" controller |
| 2 | 15000rpm, BBT40, direct drive spindle |
| 3 | 24 tool, BBT40/CAT40/SK40, Arm type |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Automatic centralized lubrication system |
| 8 | Fully enclosed splash guard |
| 9 | Chip auger with lift up exhaust tube |
| 10 | Working light |
| 11 | Indication tower light |
| 12 | Coolant gun & air gun |
| 13 | Coolant flushing system |
| 14 | Coolant tank |
| 15 | Manual pulse generator ( MPG ) |
| 16 | Ethernet & RS-232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | 3-Axis absolute encoder motors |
| 19 | Tool kits |
| 20 | Leveling bolts & pads |
| 21 | Operation manuals |
| 22 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 23 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | Mitsubishi M80VA, 10.4" controller |
| 2 | Heidenhain TNC7, 24" controller |
| 3 | 32 tool, Arm type |
| 4 | Coolant through spindle (30 bar) |
| 5 | Oil skimmer |
| 6 | Oil mist device |
| 7 | Oil mist collector |
| 8 | 3-axis linear scale |
| 9 | Air conditioner for electrical cabinet |
| 10 | Workpiece measurement system |
| 11 | Tool length measurement system |
| 12 | 4th axis rotary table |
| 13 | Scraper tpye chip conveyor |
| 14 | Chain type chip conveyor |
| 15 | Transformer |
| 16 | Stablizer |
| 17 | CE (CE area only) |
VC1200
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, 10.4" controller |
| 2 | 15000rpm, BBT40, Direct drive spindle |
| 3 | 30 tool, BBT40/CAT40/SK40, Arm type |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Automatic centralized lubrication system |
| 8 | Fully enclosed splash guard |
| 9 | Chain type chip conveyor |
| 10 | Working light |
| 11 | Indication tower light |
| 12 | Coolant gun & air gun |
| 13 | Coolant flushing system |
| 14 | Coolant tank |
| 15 | Manual pulse generator ( MPG ) |
| 16 | Ethernet & RS-232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | 3-Axis absolute encoder motors |
| 19 | Tool kits |
| 20 | Leveling bolts & pads |
| 21 | Operation manuals |
| 22 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 23 | Controller warranty (Controller warranty upon controller manufacturer) |
VC1500
| No | Standard Accessories |
|---|---|
| 1 | FANUC 0iMF Plus, 10.4" controller |
| 2 | 15000rpm, BBT40, Direct drive spindle |
| 3 | 30 tool, BBT40/CAT40/SK40, Arm type |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Automatic centralized lubrication system |
| 8 | Fully enclosed splash guard |
| 9 | Chain type chip conveyor |
| 10 | Working light |
| 11 | Indication tower light |
| 12 | Coolant gun & air gun |
| 13 | Coolant flushing system |
| 14 | Coolant tank |
| 15 | Manual pulse generator ( MPG ) |
| 16 | Ethernet & RS-232C interface |
| 17 | Heat exchanger for electrical cabinet |
| 18 | 3-Axis absolute encoder motors |
| 19 | Tool kits |
| 20 | Leveling bolts & pads |
| 21 | Operation manuals |
| 22 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 23 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | Mitsubishi M80VA, 10.4" controller |
| 2 | Heidenhain TNC7, 24" controller |
| 3 | 40 tool, Arm type |
| 4 | Coolant through spindle (30bar) |
| 5 | Oil skimmer |
| 6 | Oil mist device |
| 7 | Oil mist collector |
| 8 | Air conditioner for electrical cabinet |
| 9 | Workpiece measurement system |
| 10 | Tool length measurement system |
| 11 | 3-axis linear scales |
| 12 | 4th/5th axis rotary table |
| 13 | Scraper tpye chip conveyor |
| 14 | Transformer |
| 15 | Stablizer |
| 16 | CE (CE area only) |
