UVC600
UVC600
The Takumi UVC600, 5-axis machining center, is designed for high precision finishing of medium and large size parts in markets such as dynamic die and mold, aerospace and automobile applications.The solid one-piece bed, provides excellent support for UVC600. The cantilever table is robust embedded in the machine frame on the side, which not only enhances the rigidity of the machine, but creates more space in the machine.

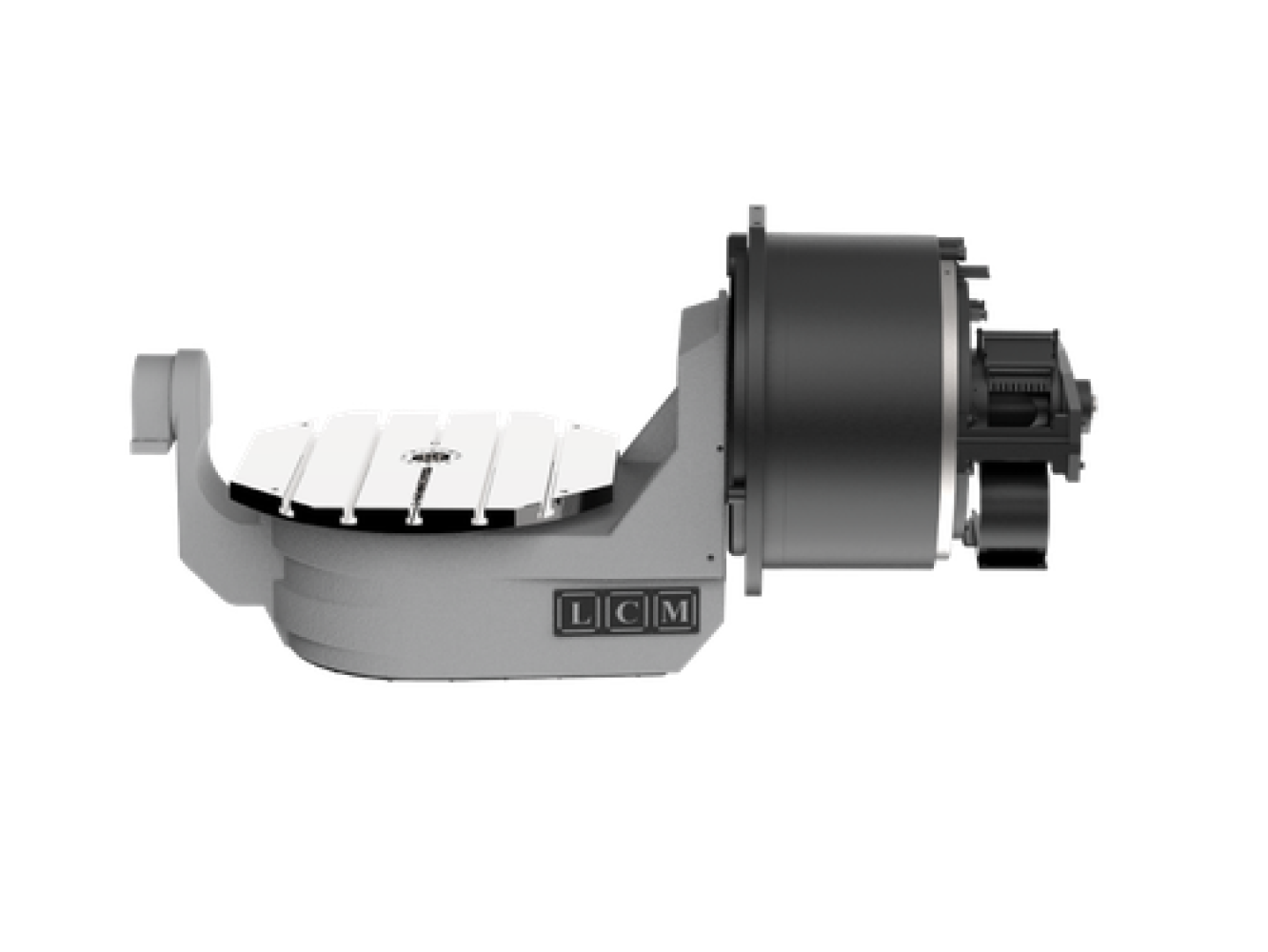

High Performance DDM Cantilever Table
The cantilever table uses integral direct drive motors (DDM),instead of gear drives, promoting quicker response, higher torque, outstanding position accuracy and lower service maintenance. The cantilever table is driven by direct drive motor (DDM), which motion can be delivered 100% from motor to provide high speed, high torque and zero backlash.

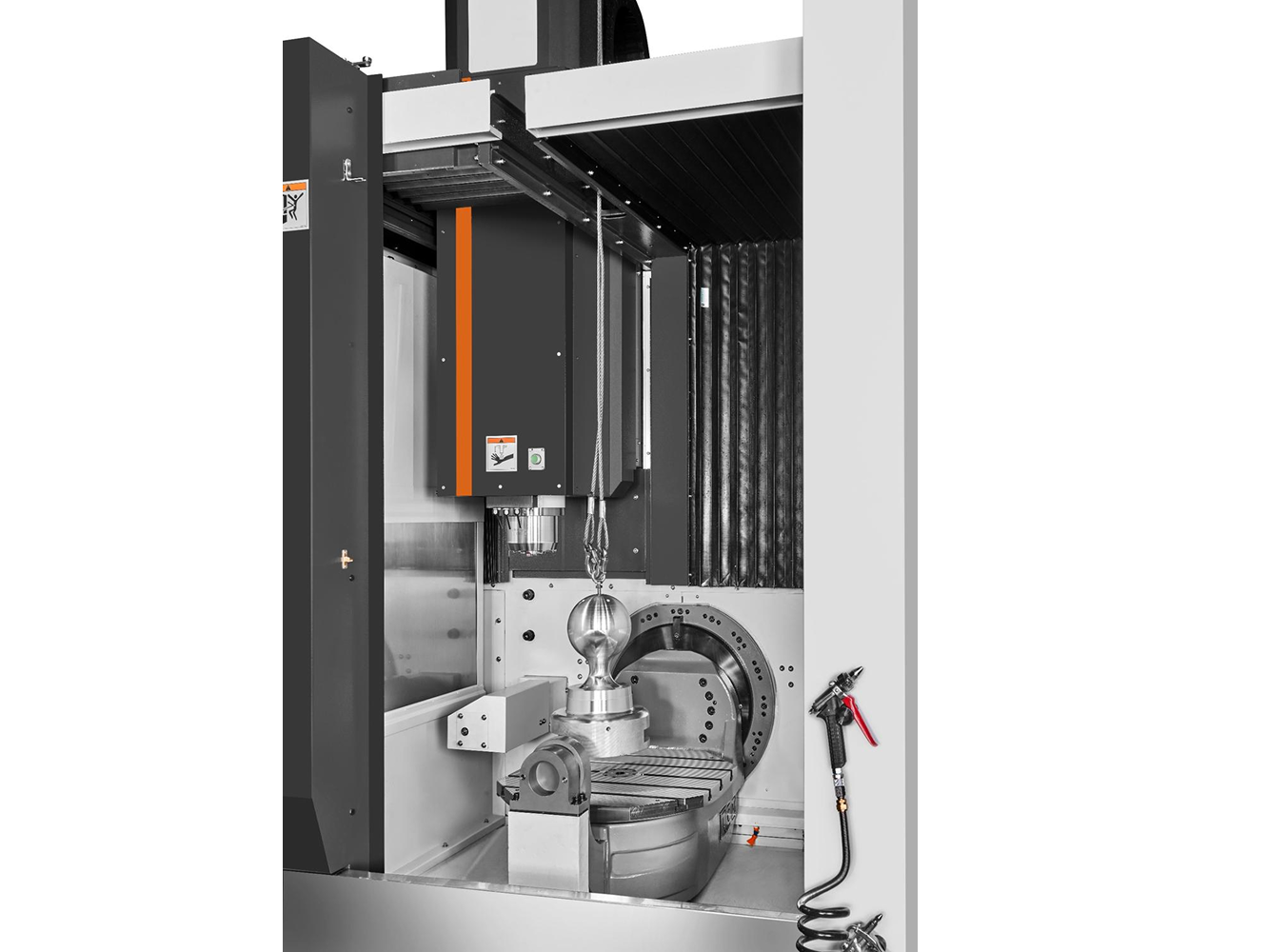

Ergonomic loading and unloading
Easy loading and unloading of heavy and large workpieces through the gap on the top cover by over-head crane.

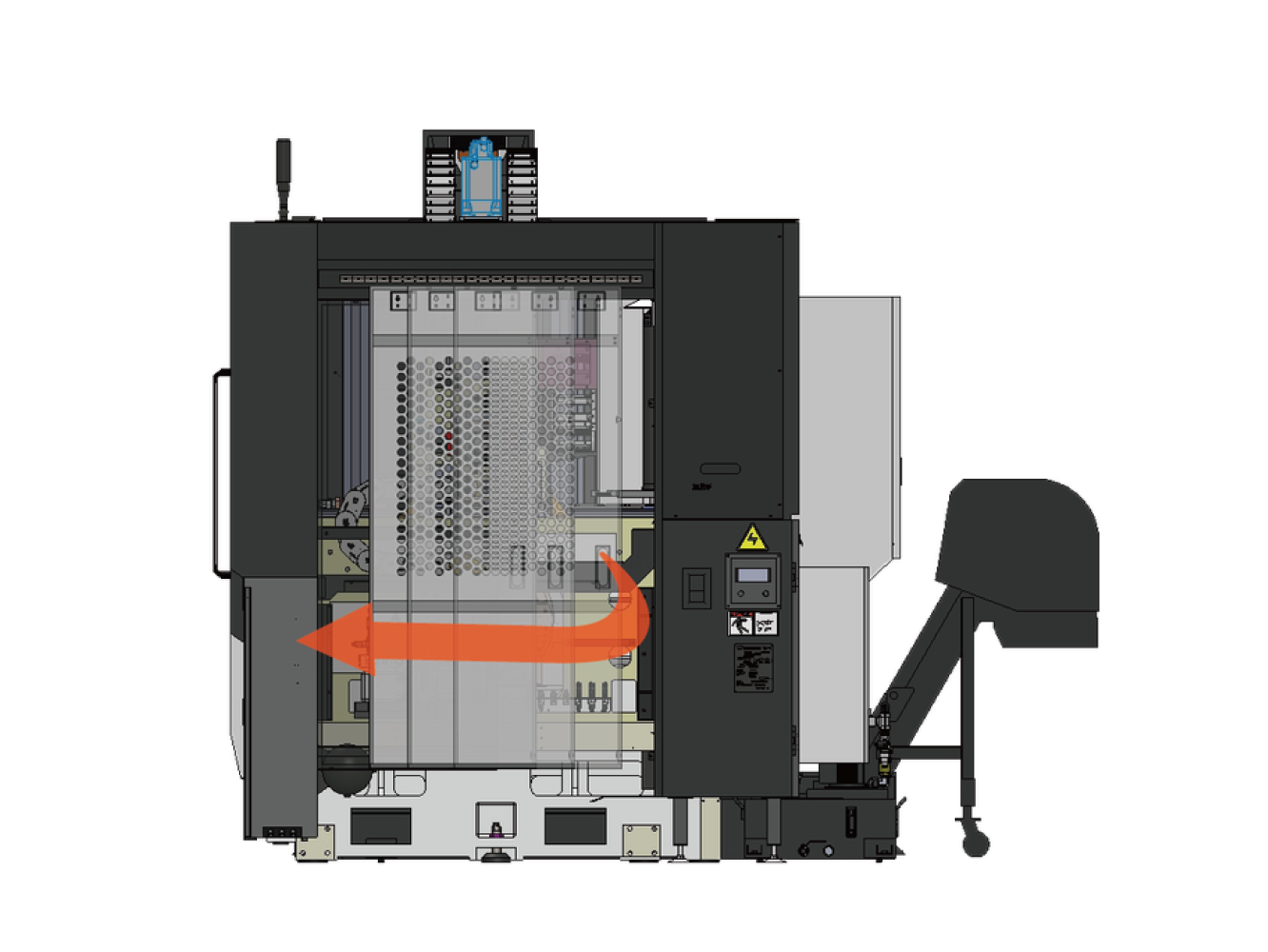

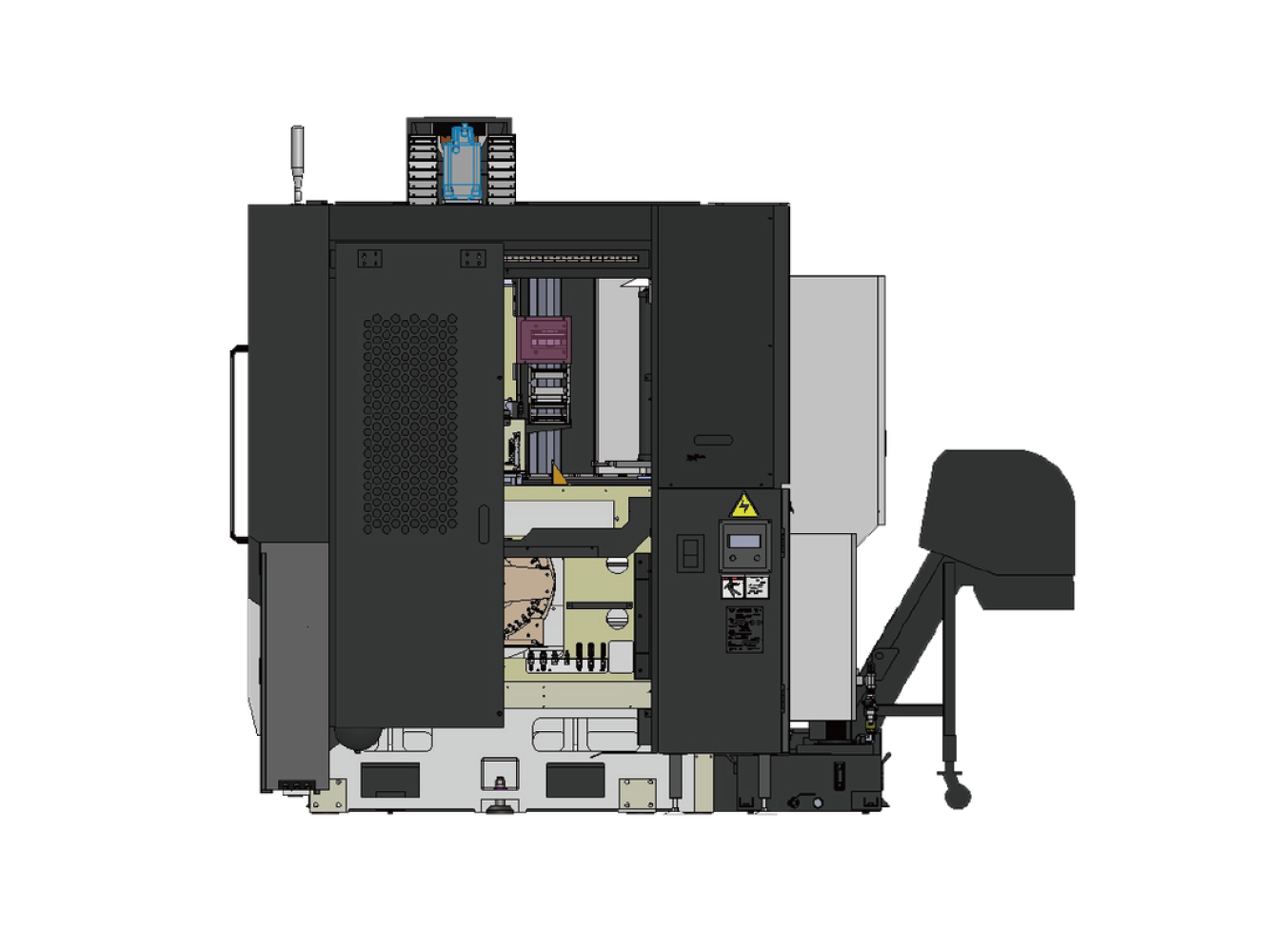

Simple maintenance
The sliding maintenance door design makes people to have easier access to the hydraulic system and the spindle clamping system.
Travel
| Items | UVC600 |
|---|---|
| X/Y/Z-axis | 820 / 550 / 500mm |
| Distance from spindle nose to table | 150-650mm |
Table
| Items | UVC600 |
|---|---|
| Dimension | □600mm |
| Max. load | 350kg |
| T-slot | 14 x 5 |
Spindle
| Items | UVC600 |
|---|---|
| Spindle type | Direct-drive |
| Spindle speed | 15000rpm |
| Spindle motor power | 10kW/14kW (Cont./S6-40%) |
| Spindle taper | BBT40 |
Feed
| Items | UVC600 |
|---|---|
| Rapid feed (X/Y/Z) | 36/36/36m/min |
| Cutting feed | 20000mm/min |
C-Axis
| Items | UVC600 |
|---|---|
| Rotation range | 360° |
| Positioning accuracy | ±5" |
| Rotation speed | 100rpm |
| Rotation torque (cont.) | 390Nm |
| Rotation torque (max.) | 700Nm |
| Clamping torque | 630Nm |
B-Axis
| Items | UVC600 |
|---|---|
| Rotation range | -40° ~ +110° |
| Positioning accuracy | ±5" |
| Rotation speed | 50rpm |
| Rotation torque (cont.) | 1875Nm |
| Rotation torque (max.) | 3460Nm |
| Clamping torque | 1350Nm |
ATC & Magazine
| Items | UVC600 |
|---|---|
| ATC type | Chain type |
| Number of tools | 40pcs |
| Max. tool diameter (next pockets epmty) | 75/150mm |
| Max. tool length | 300mm |
| Max. tool weight | 7kg |
Supply
| Items | UVC600 |
|---|---|
| Air pressure | 6kgf/cm2 |
| Electric power supply | 60kVA |
Net Weight
| Items | UVC600 |
|---|---|
| Machine weight | 10000kg |
| No | Standard Accessories |
|---|---|
| 1 | Heidenhain TNC7, 24” |
| 2 | 15,000rpm, BBT40, Direct drive spindle |
| 3 | 40T, chain type tool magazine |
| 4 | Steel belt type chip conveyor |
| 5 | Spindle cooling system |
| 6 | Spindle oil air lubrication device |
| 7 | Spindle coolant splash |
| 8 | Cutting coolant system |
| 9 | Air blast through spindle taper |
| 10 | Full enclosed splash guard |
| 11 | Linear scales (X/Y/Z) |
| 12 | Centralized automatic lubrication system |
| 13 | 3-axis lubrication oil separated collection system |
| 14 | Coolant tank & coolant flushing system |
| 15 | 3-Color signal light |
| 16 | Working light |
| 17 | Foundation pads & bolts kits |
| 18 | Air conditioner for electric cabinet |
| 19 | Rotary encoders for rotary axis |
| 20 | Oil skimmer |
| 21 | Dynamic collision monitoring |
| 22 | Maintenance tools |
| 23 | Manuals |
| 24 | Washing gun & air gun |
| 25 | Manual pulse generator |
| 26 | RS232 and RJ45 interface |
| 27 | CE certified |
| No | Optional Accessories |
|---|---|
| 1 | 60T, chain type tool magazine |
| 2 | Scraper type chip conveyor |
| 3 | Coolant through spindle (30bar/ 70bar) |
| 4 | Cutting oil mist cooling device |
| 5 | Oil mist collector device |
| 6 | Workpiece measurement |
| 7 | Tool measurement |
| 8 | Transformer |
