The PV Series are designed for high rigidity, reliability and productivity, as demonstrated in both surface finish quality and consistent precision. The PV Series combines the highest removal with the best dynamics. It can handle a wide range of workpieces for all kind of applications.

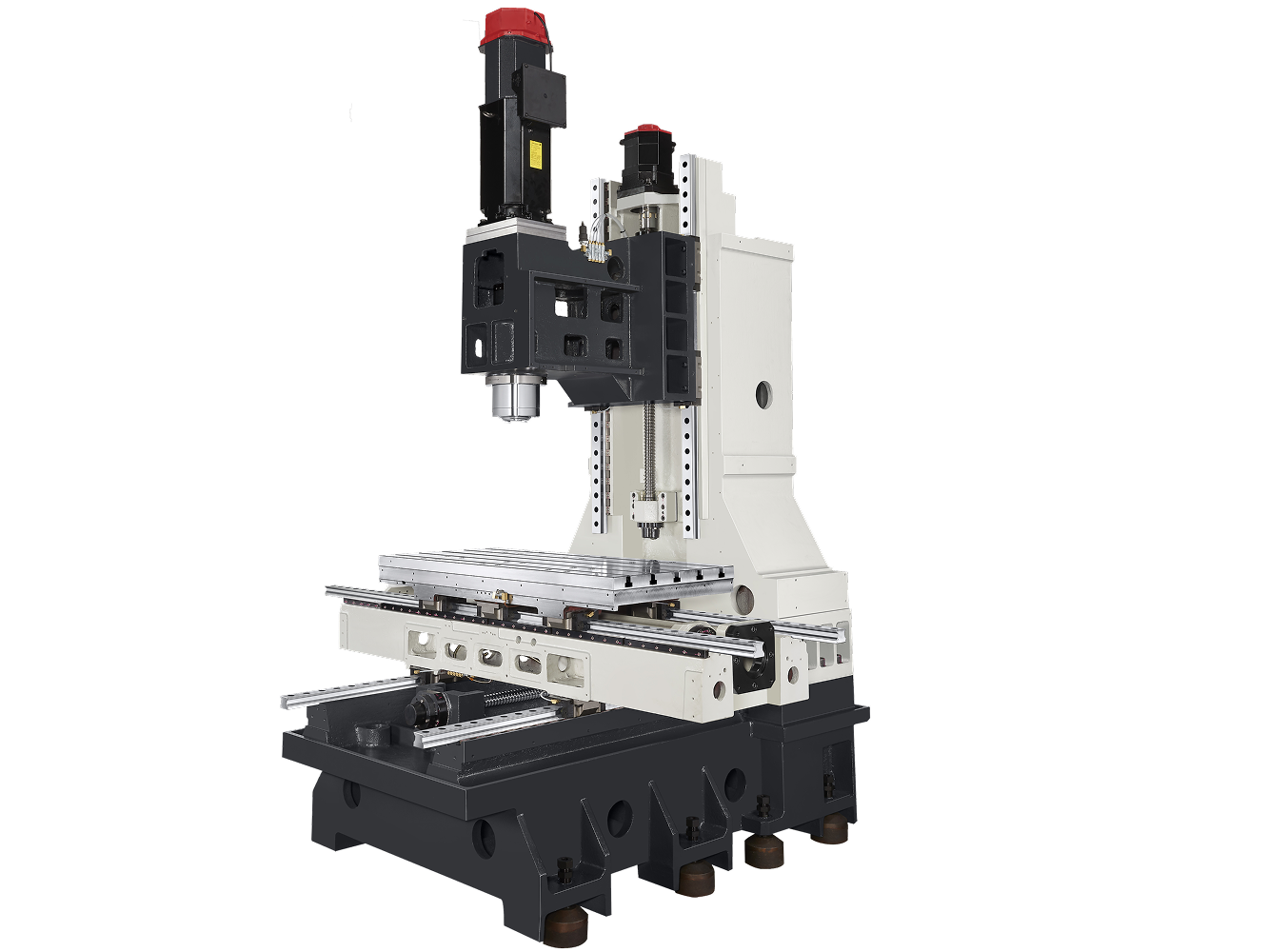

High rigidity structure
Bed, columns, saddle and other main castings are made of Meehanite grade cast iron and remove the internal stress by heat treatment to ensure the best structural stability and positioning accuracy.
The PV Series achieves high-rigidity and optimal machine structure by using FEM analysis from the design.

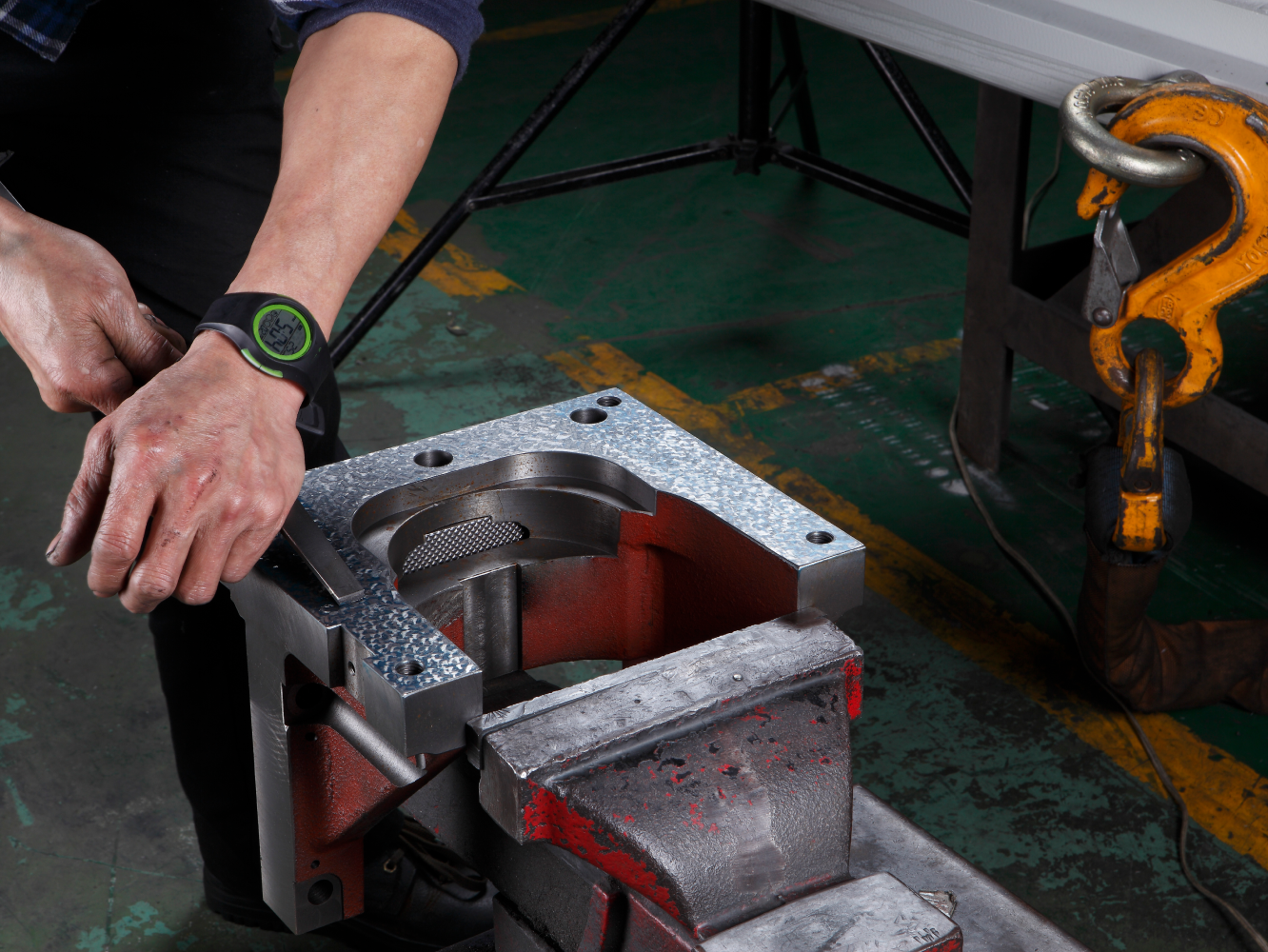

Hand scraping
Accuracy is ensured by hand scraped contact points. Contact surfaces such as column to base components, spindle cartridge to spindle housing, ball screw bearing block seats to bearing retainer and worktable to linear guide trucks and motor seat.
Hand scraping results in better mating surfaces of key components and will provide consistent results over a longer period of time.
High speed direct drive spindle
The high-power direct drive spindle limits vibration, noise and power loss during high speed rotations to achieve superior part finish.

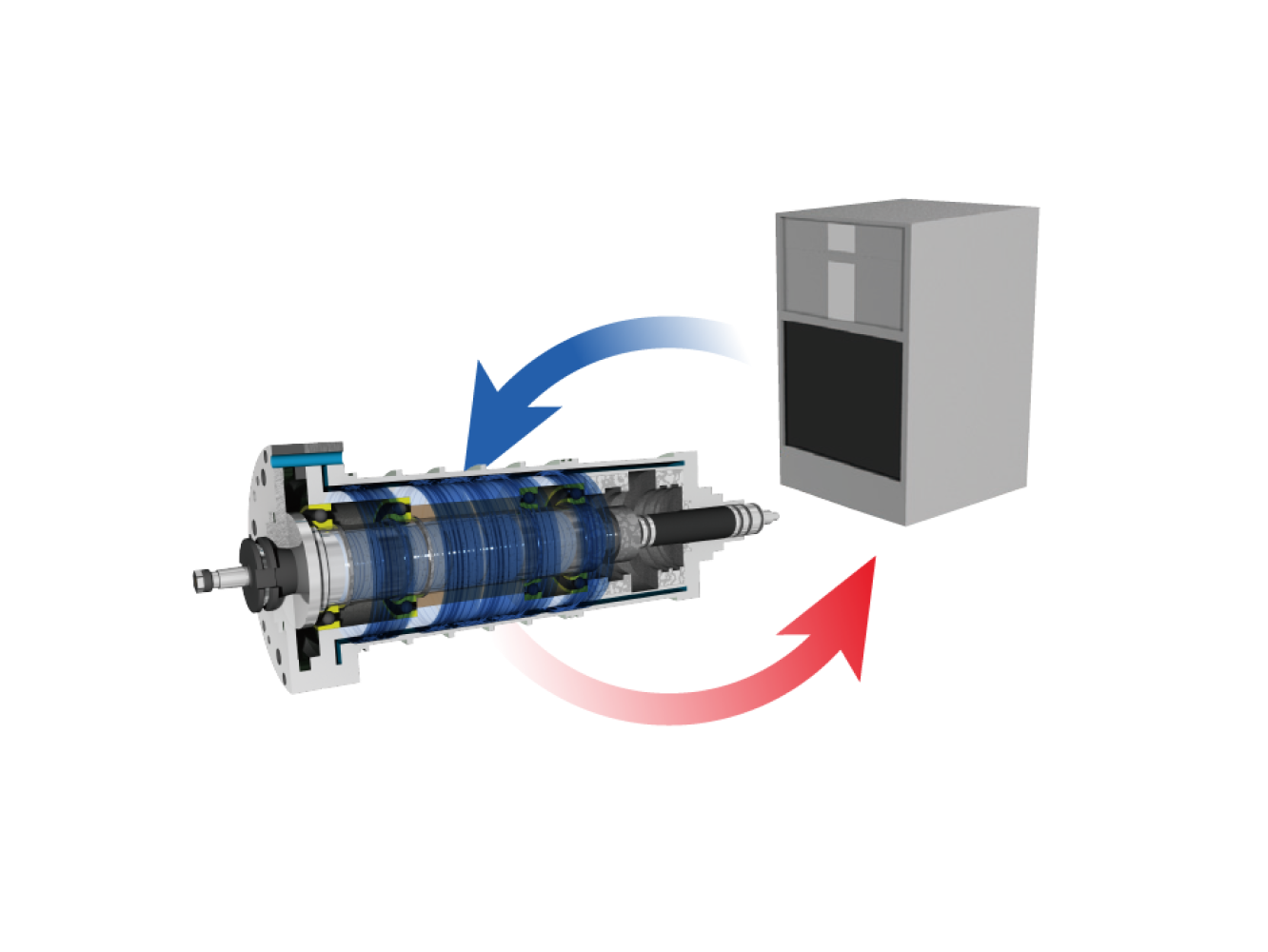

Stable spindle cooling circulation
Spindle temperature is constantly controlled by oil chiller. Our test result have proven that the temperature of the circulating oil is controlled within certain variation, which minimizes thermal displacement during continuous operation at high speed.
Travel
| Items | Unit | PV66 | PV1052 |
|---|---|---|---|
| X axis | mm | 660 | 1060 |
| Y axis | mm | 406 | 520 |
| Z axis | mm | 508 | 610 |
| Distance from spindle nose to table | mm | 102 – 610 | 115 – 725 |
Table
| Items | Unit | PV66 | PV1052 |
|---|---|---|---|
| Dimension | mm | 762 × 406 | 1160 × 520 |
| Max. table load | kg | 500 | 650 |
| T-slot（width × pitch × number） | mm | 18 × 100 × 3 | 18 × 100 × 5 |
Spindle
| Items | Unit | PV66 | PV1052 |
|---|---|---|---|
| Spindle type | - | Direct drive | Direct drive |
| Spindle speed | rpm | 12 000 | 12 000 |
| Spindle motor power (Cont./S3-25%) | kW | 7.5 / 15 | 7.5 / 15 |
| Spindle taper | - | BBT40 | BBT40 |
Feed Rate
| Items | Unit | PV66 | PV1052 |
|---|---|---|---|
| Rapid traverse（X / Y / Z） | m/min | 38 / 38 / 32 | 32 / 32 / 32 |
| Cutting feed rate | mm/min | 12 000 | 12 000 |
| Motor power（X / Y / Z） | kW | 1.8 / 1.8 / 2.5 | 1.4 / 2.5 / 2.5 |
ATC
| Items | Unit | PV66 | PV1052 |
|---|---|---|---|
| ATC type | - | Arm | Arm type |
| Magazine capacity | pcs | 20 | 24 |
| Max. tool diameter / adjacent empty | mm | 75 / 120 | 80 / 125 |
| Max. tool length | mm | 240 | 300 |
| Max. tool weight | kg | 7 | 7 |
| Tool shank | - | — | BBT40 |
Space & System Requirement
| Items | Unit | PV66 | PV1052 |
|---|---|---|---|
| Pneumatic pressure | kgf/cm² | 6 | 6 |
| Electrical power consumption | kVA | 25 | 30 |
| Machine net weight | kg | 2 818 | 6 200 |
PV66
| No | Standard Accessories |
|---|---|
| 1 | Fanuc 0iMF-Plus Type 3, 10.4" |
| 2 | 12000rpm, #40, Direct drive spindle |
| 3 | 20T, #40, Arm type |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Cutting coolant system |
| 8 | Automatic centralized lubrication system |
| 9 | Working lamp |
| 10 | Indication lamp |
| 11 | Washing gun & air gun |
| 12 | Coolant flushing system |
| 13 | Coolant tank |
| 14 | Manual pulse generator ( MPG ) |
| 15 | Ethernet & RS-232C interface |
| 16 | Heat exchanger for electrical cabinet |
| 17 | Tool kits |
| 18 | Leveling bolts & pads |
| 19 | Operation manuals |
| 20 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 21 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | Mitsubishi M80A TypeA, 10.4" |
| 2 | Coolant through spindle (30bar) |
| 3 | Oil skimmer |
| 4 | Oil mist device |
| 5 | Oil mist collector |
| 6 | Workpiece measurement system |
| 7 | Tool length measurement system |
| 8 | Chain type chip conveyor |
| 9 | Transformer |
| 10 | CE mark (CE region only) |
PV1052
| No | Standard Accessories |
|---|---|
| 1 | Fanuc 0iMF-Plus Type 3, 10.4" |
| 2 | 12000rpm, BBT40, Direct drive spindle |
| 3 | 24T |
| 4 | Spindle air blast |
| 5 | Cutting air blast |
| 6 | Spindle oil cooler |
| 7 | Cutting coolant system |
| 8 | Automatic centralized lubrication system |
| 9 | Working lamp |
| 10 | Indication lamp |
| 11 | Washing gun & air gun |
| 12 | Coolant flushing system |
| 13 | Coolant tank |
| 14 | Manual pulse generator ( MPG ) |
| 15 | Ethernet & RS-232C interface |
| 16 | Heat exchanger for electrical cabinet |
| 17 | Tool kits |
| 18 | Leveling bolts & pads |
| 19 | Operation manuals |
| 20 | One-year machine warranty (Spindle warranty upon spindle manufacturer) |
| 21 | Controller warranty (Controller warranty upon controller manufacturer) |
| No | Optional Accessories |
|---|---|
| 1 | Mitsubishi M80A TypeA, 10.4" |
| 2 | Coolant through spindle (20bar) |
| 3 | Oil skimmer |
| 4 | Oil mist device |
| 5 | Oil mist collector |
| 6 | Workpiece measurement system |
| 7 | Tool length measurement system |
| 8 | Scraper typechip conveyor |
| 9 | Transformer |
| 10 | CE mark (CE region only) |
