The Takumi G Series, high-speed graphite milling machine provides an optimal solution for graphite machining.
The unique design provides clean and dry machining for high accuracy, surface quality and dynamic processing thanks to the optimal mechanical structure, high response axial transmission system, low vibration and excellent thermal controlled spindle.

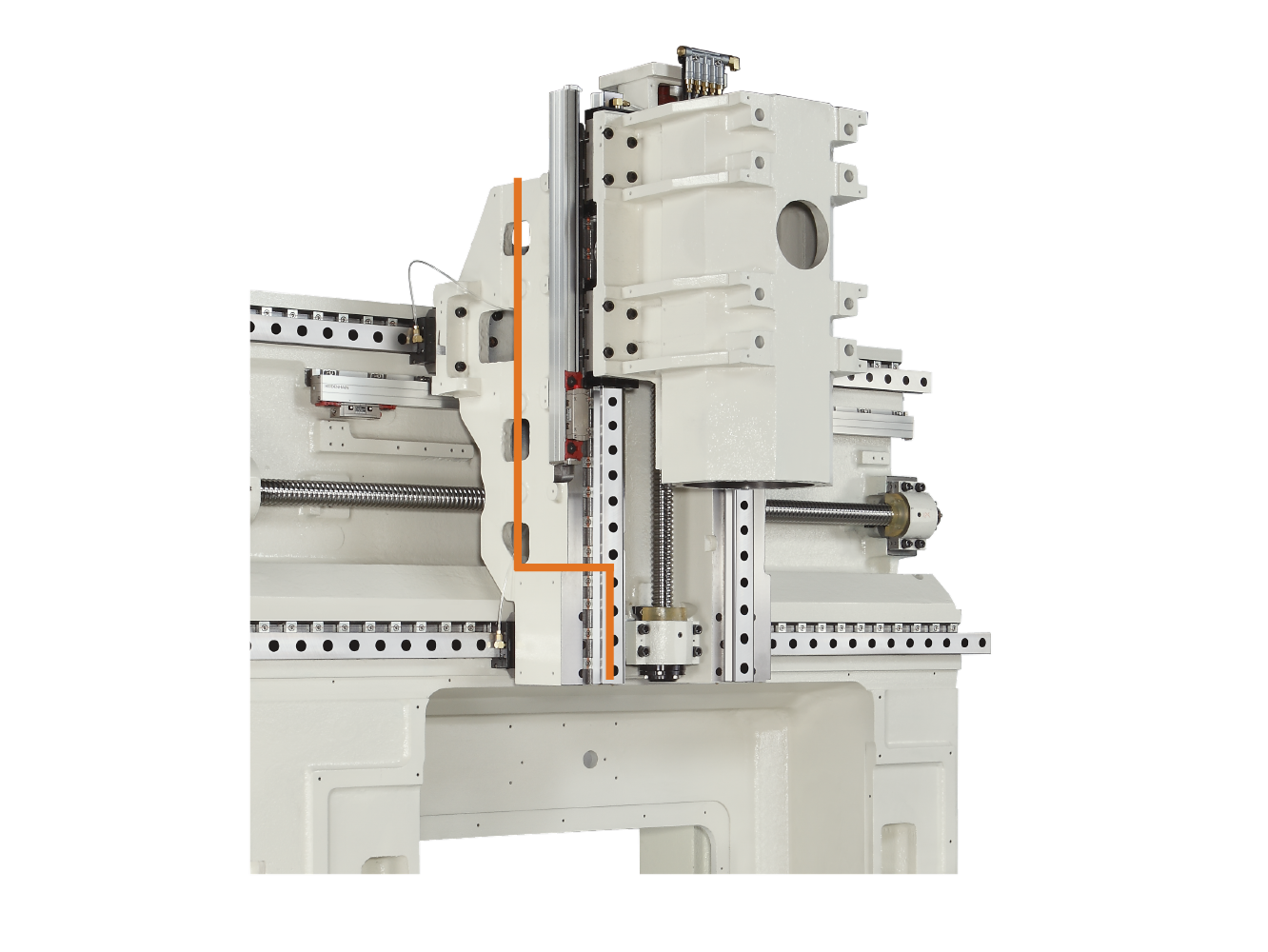

Outstanding ladder structure on the beam
The bridge utilizes a “ladder design” head casting and saddle which increases rigidity, reduces overhang and eliminates head deflection. The Y-axis cross rail saddle carries a constant weight, allowing for faster cutting while maintaining excellent part finish.
High-efficient vacuum system(G600):
The vacuum system is designed on the table with 2 6-inch collection hoses to extract the grahpite dusts without tool interference.

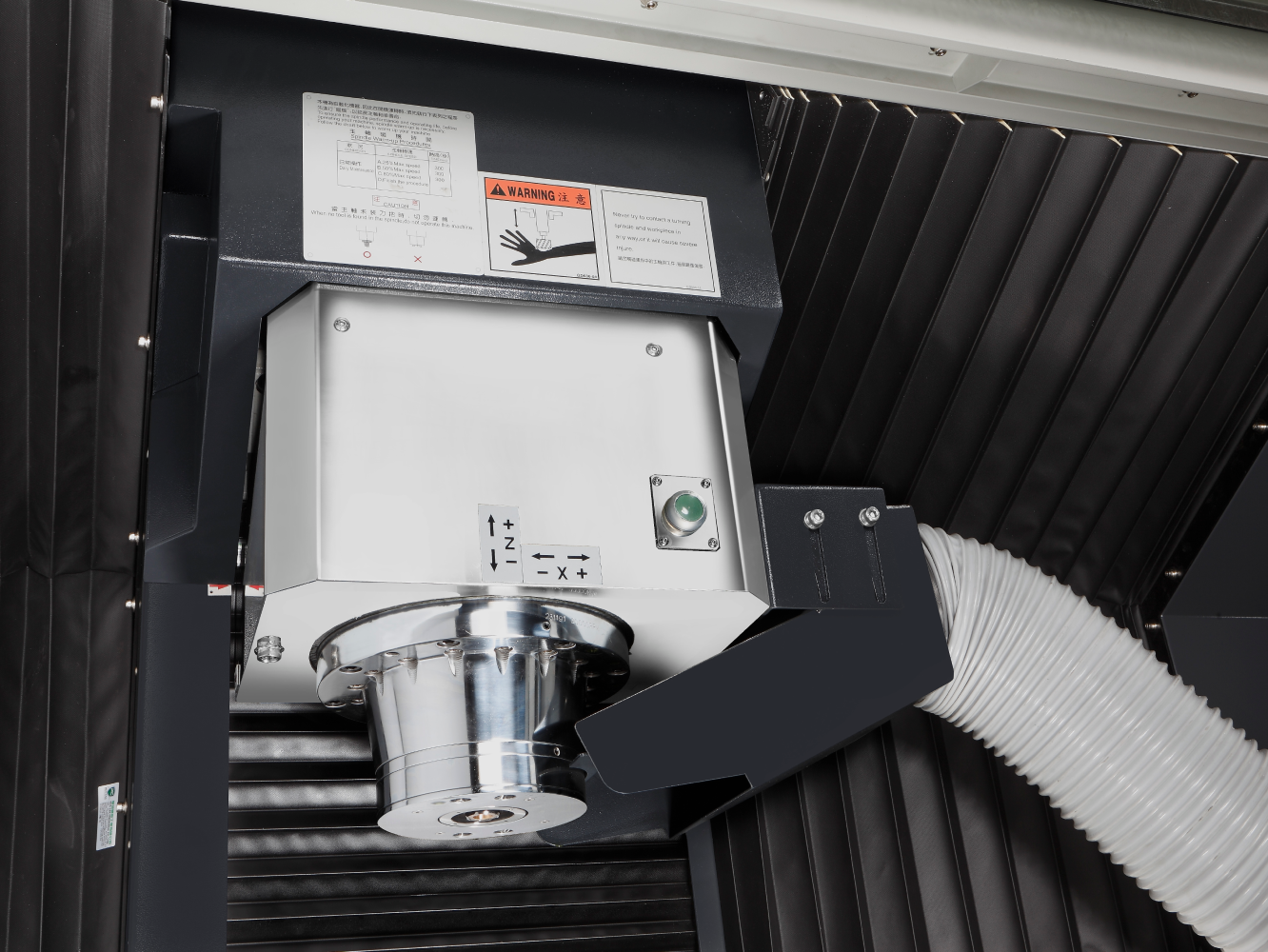

High-efficient vacuum system(G1000):
High-efficient dust suction rate at 83%, thanks to the minimal distance of dusts suction nozzle to the tool tip.



Travel

ItemsUnitG600G1000
X axismm6001020
Y axismm600700
Z axismm350500
Distance from spindle nose to tablemm120-470180-680
Distance between columnsmm6801080

Table

ItemsUnitG600G1000
Dimensionmm600 × 6001050 × 700
Max. loadkg500800
T-slot（width × pitch × number）mm14 × 100 × 618 × 125 × 6

Spindle

ItemsUnitG600G1000
Spindle type-Built-inBuilt-in
Spindle speedrpm30 00018 000
Motor powerkW10 / 12 (Cont./S6-40%)18.5 / 30 (Cont./S3-25%)
Spindle taper-HSK-E40HSK-A63

Feed Rate

ItemsUnitG600G1000
Rapid traverse（X / Y / Z）m/min30 / 30 / 3032 / 32 / 32
Cutting feed ratemm/min12 00020 000
Motor power（X / Y / Z）kW1.6 / 1.6 / 3.04.5 / 4.5 / 4.5

ATC

ItemsUnitG600G1000
ATC type-UmbrellaUmbrella
Magazine capacitypcs2016
Max. tool diameter / next pocket emptymm75 / 100105 / 120
Max. tool lengthmm200250
Max. tool weightkg1.53

Space & System Requirement

ItemsUnitG600G1000
Pneumatic pressurekgf/cm²66
Electrical power consumptionkVA3050
Machine net weightkg5 5009 100

G600

NoStandard Accessories
1Fanuc 0iMF-Plus 10.4”
230000 rpm, HSK-E40, built-in type spindle
320T, HSK-E40, Umbrella type ATC
4Graphite vacuum system
5Grease lubrication system to ballscrews
6Spindle air blast
7Cutting air blast
8Spindle oil cooler
9Automatic centralized lubrication system
10Full chip enclosure
113-axis absolute encoder motors
123-Color signal light
13Working lamp
14Manual pulse generator (MPG)
15Ethernet card & RS-232C interface
16Air conditionor for electrical cabinet
17Tool kits
18Leveling block and screws
19Operation manuals
20Air gun
NoOptional Accessories
1Heidenhain TNC7 24” / TNC7 Basic 16”
2Linear scales (X/Y/Z)
3Workpiece measurement system
4Tool length measurement system
5Transformer
6CE Certificated
7Spindle thermal compensation
8Graphite cutting package

G1000

NoStandard Accessories
1Fanuc 0iMF-Plus 10.4” controller
218000 rpm, HSK-A63, built-in type spindle
316T, Umbrella type ATC
4Graphite vacuum system
5Grease lubrication system to ballscrews
6Spindle air blast
7Cutting air blast
8Spindle oil cooler
9Automatic centralized lubrication system
10Full chip enclosure
113-axis absolute encoder motors
123-Color signal light
13Working lamp
14Manual pulse generator (MPG)
15Ethernet card & RS-232C interface
16Air conditionor for electrical cabinet
17Tool kits
18Leveling block and screws
19Operation manuals
20Air gun
NoOptional Accessories
1Heidenhain TNC7 24” / TNC7 Basic 16”
225000rpm, HSK-E50, built-in spindle
3Linear scales (X/Y/Z)
4Workpiece measurement system
5Tool length measurement system
6Transformer
7CE Certificated
830T, HSK-A63
9Spindle thermal compensation
10Graphite Cutting Package
