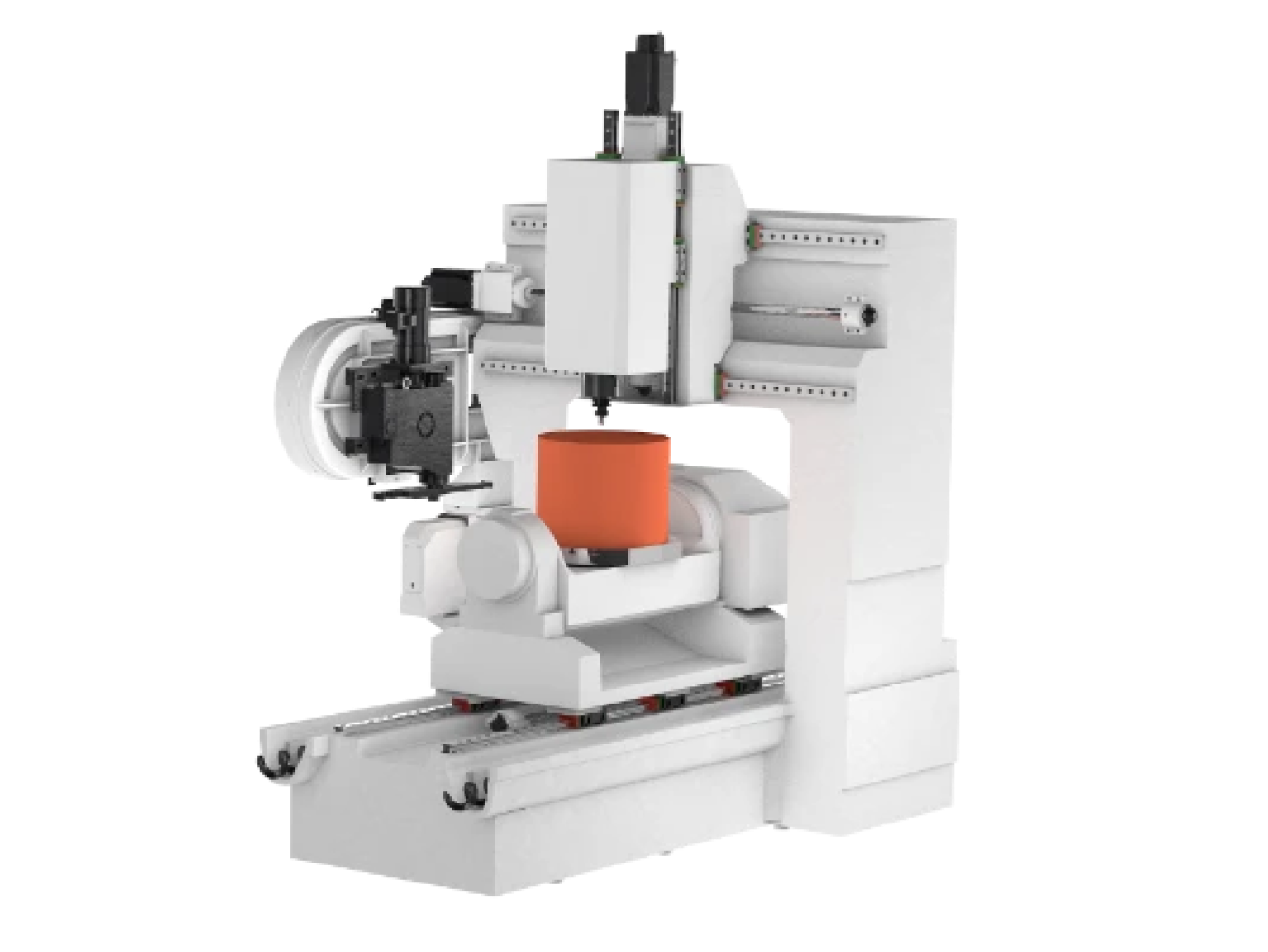

The Takumi U Series 5-axis double column machining center are designed for high precision finishing of small and medium size part in market such as dynamic die and mold, aerospace and medical applications. The U Series has an extremely robust structure to ensure enough stiffness to perform semi-finishing and finishing and offer the ideal dynamic, speed and accelerations.

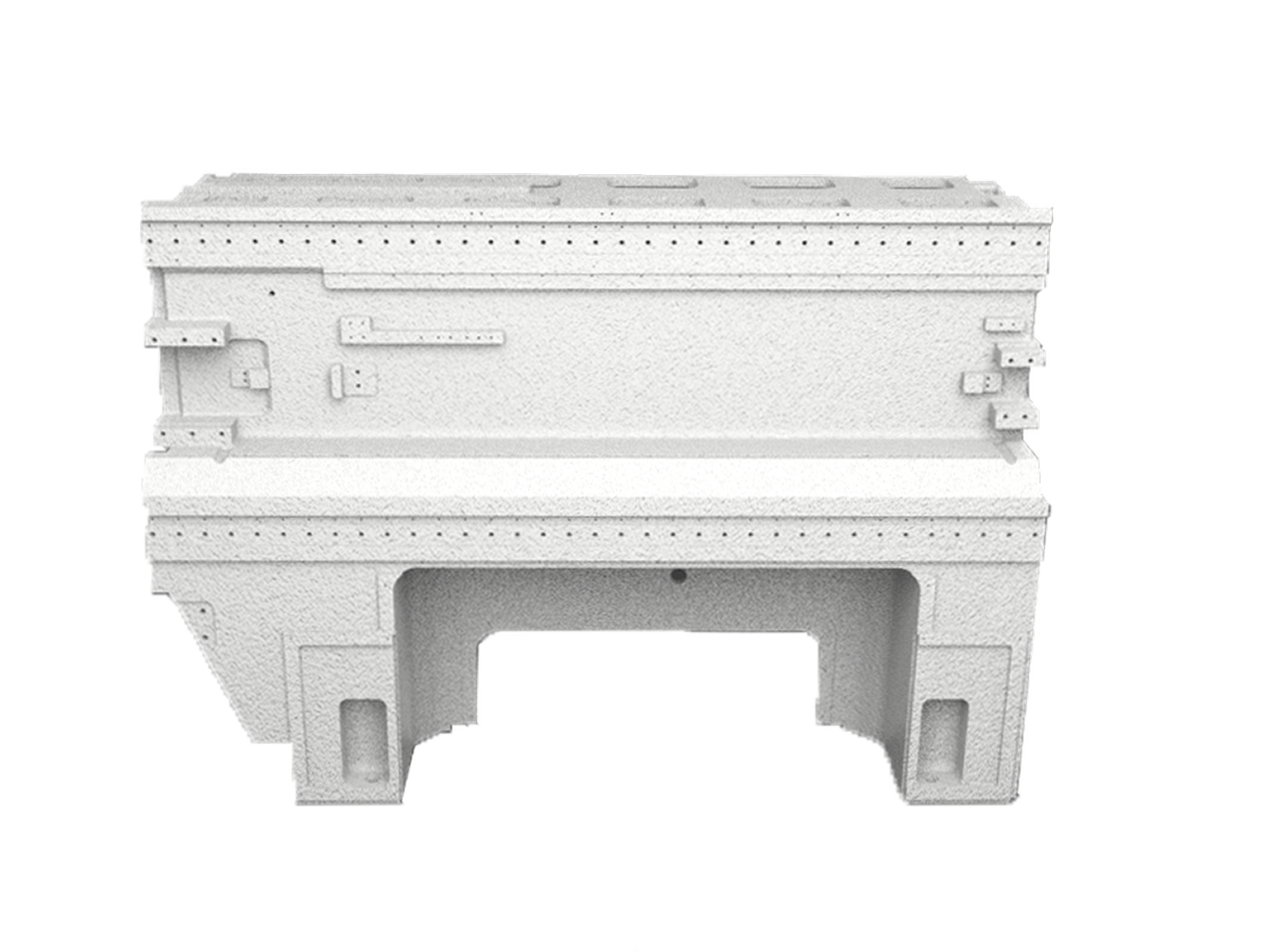

Double column structure
The one-piece design provides increased weight to absorb cutting vibration, and increased rigidity. The dual contact areas with the base eliminates pitch in the Y-axis and reduces the effect of machine leveling changes over time.

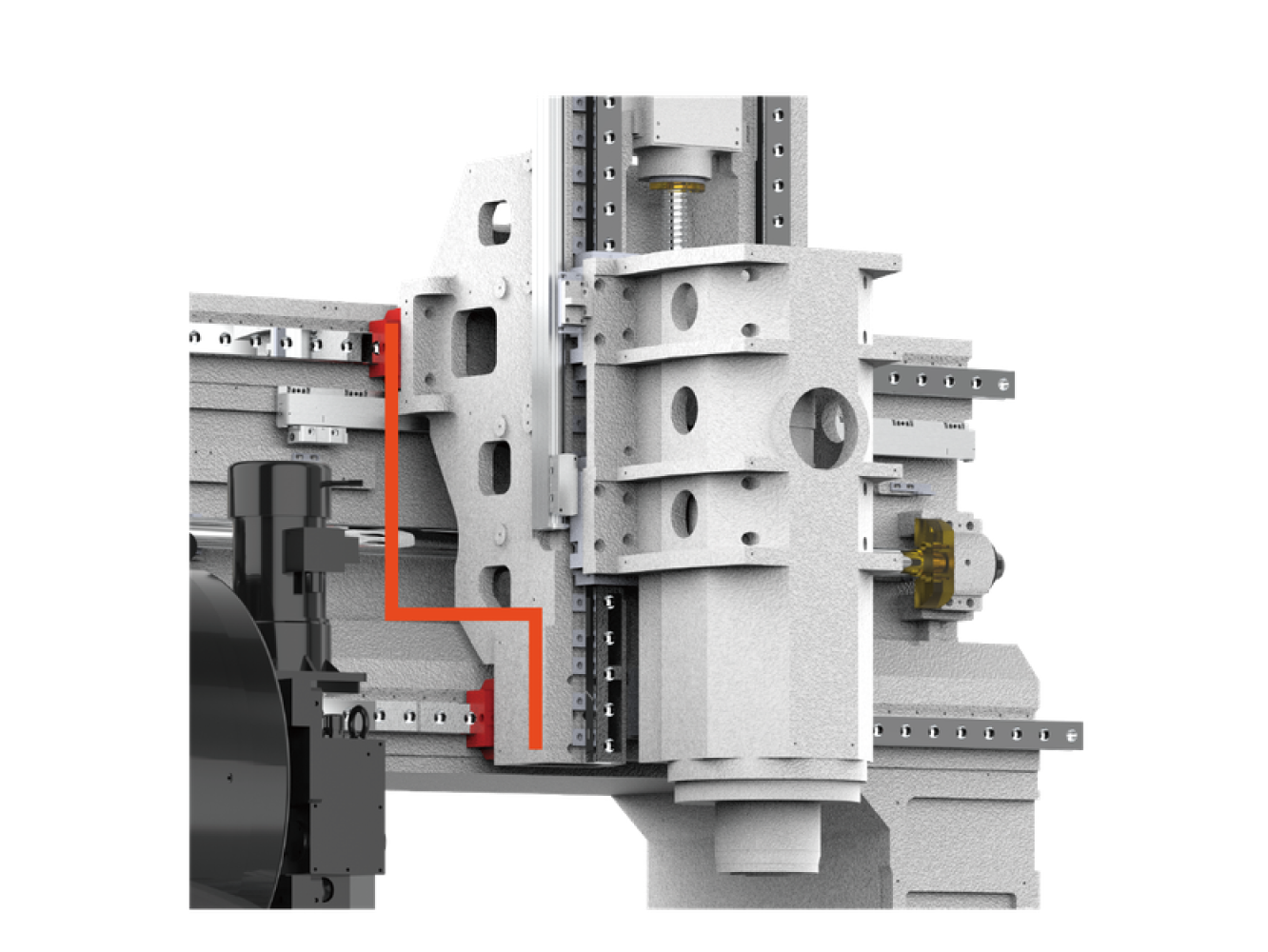

Outstanding ladder structure on the beam
The bridge utilizes a “ladder design” head casting and saddle which increases rigidity, reduces overhang and eliminates head deflection. The Y-axis cross rail saddle carries a constant weight, allowing for faster cutting while maintaining excellent part finish.

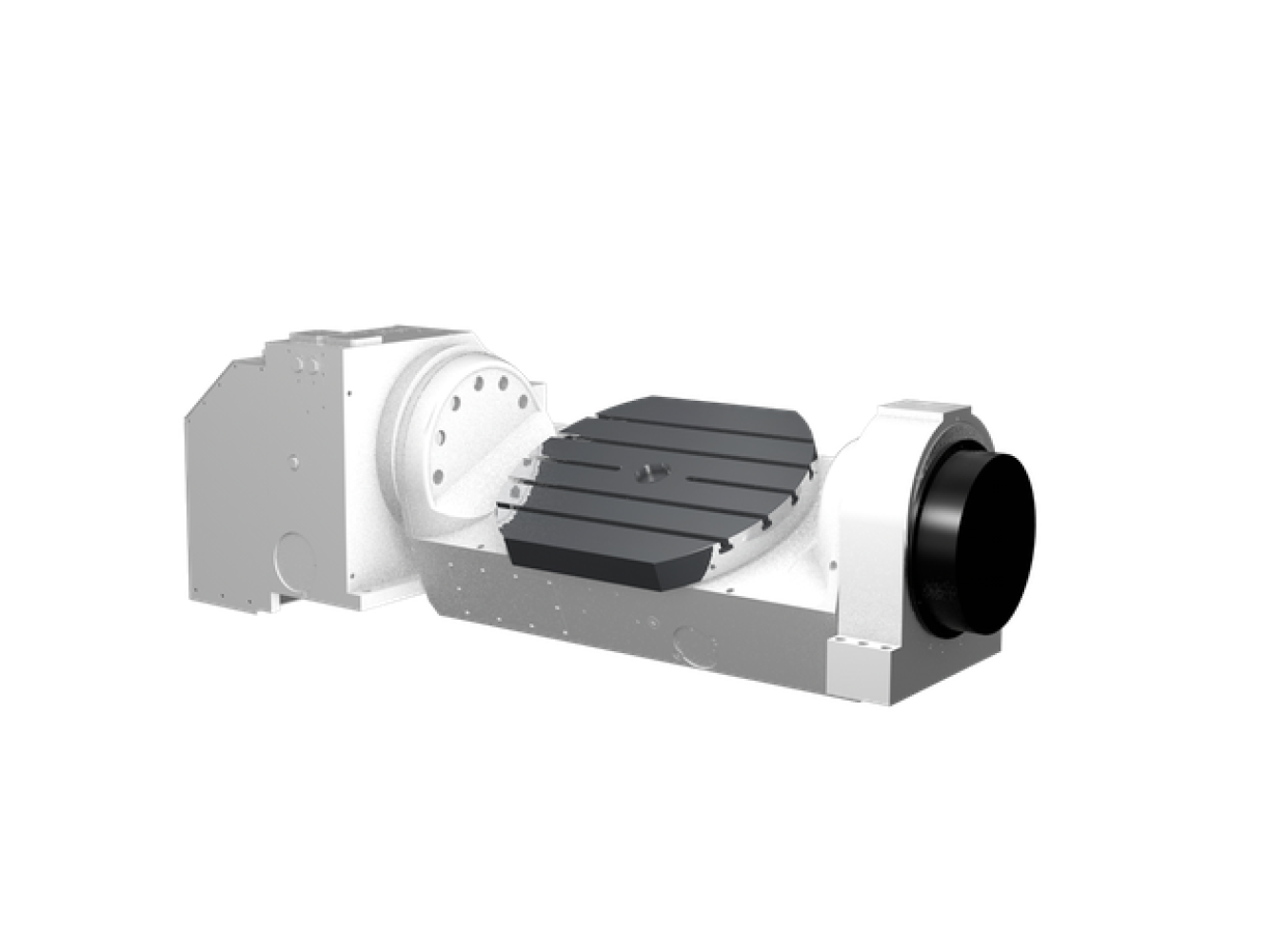

Rotary Table
Both axes are equipped with direct mounted ring encoders for high positioning and repeatability accuracy.
The rotary axes deliver twice the accuracy of competitive machines to achieve greater accuracy performance when machining away from the center of rotation.
The largest machining area in its class
The U600 is equipped with a larger rotary table with special design to make a larger machining area.
U Series
Intelligent Spindle Thermal Compensation Technology
TAKUMI’s unique spindle thermal compensation technology minimizes the heat from generating and compensates thermal expansion, which ensures better surface finish over a long running times.
Machine warm-up is not needed
High precision cutting performance is guaranteed
High processing stability over continuous runs
Save money and reduce the time and cost on cutting workpieces.



Travel

ItemsUnitU400U600
X axismm580890
Y axismm9501050
Z axismm500580
Distance From Spindle Nose to Tablemm90 – 590120 – 700

Table

ItemsUnitU400U600
Table DimensionmmØ398Ø600
Table Loading Capacitykg250500
T-slot（width × number）mmNo.6 × 14 (60°)14 × 80 × 5

Spindle

ItemsUnitU400U600
Spindle Type-In-lineDirect drive
Spindle Speedrpm15 00015 000
Spindle Motor PowerkW10 / 14 (S6-40 %)10 / 14 (S6-40 %)
Spindle Taper-BBT40BBT40

Feed Rate

ItemsUnitU400U600
Rapid Traverse（X / Y / Z）m/min36 / 36 / 3636 / 36 / 36
Cutting Feed Ratem/min20 / 20 / 2020 / 20 / 20

Swiveling axis

ItemsUnitU400U600
Rotary Table DiametermmØ398Ø600
Rotation Range°360360
Positioning Accuracysecond±5±5
Rotation Speedrpm2525
Rotation TorqueNm7561700

Turning axis

ItemsUnitU400U600
Rotation Range°+30 – -110+30 – -110
Positioning Accuracysecond±5±10
Rotation Speedrpm2511.1
Rotation TorqueNm7561700

ATC & Tool Magazine

ItemsUnitU400U600
Tool Magazine Type-ArmArm
Magazine Capacitypcs3030
Max. Tool Diameter / next emptymm75 / 15075 / 150
Max. Tool Lengthmm300300
Max. Tool Weightkg77

Space & System Requirement

ItemsUnitU400U600
Coolant Tank CapacityL300600
Pneumatic Pressurekgf/cm²66
Electrical Power ConsumptionkVA6060
Machine Net Weightkg9 500—

U400

NoStandard Accessories
1HEIDENHAIN TNC7, 24" controller
215000 rpm, BBT40, Drive-drive spindle
330T, arm type ATC
4Rotary Encoder for rotary axis
53-axis Linear Scales
6DCM anti-collision monitoring function
7Spindle oil air lubrication device
8Spindle cooling system
9Centralized automatic lubrication system
10Air blast through spindle taper
11Cutting air blast
12Full enclosed splash guard
13Washing gun & air gun
14Coolant tank & coolant flushing system
15Steel belt type chip conveyor
16Working lamp
173-color signal lamp
18Air Conditionner
19Oil skimmer
20Foundation pads & bolts kits
21Tool kits
22Operation manuals, PLC& electrical circuit diagrams
23CE safety standard
NoOptional Accessories
124,000 rpm , HSKA63 , Built-in type spindle
220,000 rpm,HSKA63, Built-in type spindle
350T, 90T, arm type ATC
4Air through spindle system
5Coolant through spindle system (30/70 bar)
6Scraper type chip conveyor
7Cutting oil mist cooling device
8Oil mist collection device
9Automatic tool length measurement system
10Automatic workpiece measurement system
11Transformer
12Cutting coolant system
13Spindle Thermal Compensation
143-Axis Ballscrew Cooling
155-Axis Center Dynamic Offset
16Siemens One, 15"

U600

NoStandard Accessories
1HEIDENHAIN TNC7, 24" controller
215000 rpm, BBT40, Drive-drive spindle
330T, arm type ATC
4Rotary Encoder for rotary axis
53-axis Linear Scales
6DCM anti-collision monitoring function
7Spindle oil air lubrication device
8Spindle cooling system
9Centralized automatic lubrication system
10Air blast through spindle taper
11Cutting air blast
12Full enclosed splash guard
13Washing gun & air gun
14Coolant tank & coolant flushing system
15Steel belt type chip conveyor
16Working lamp
173-color signal lamp
18Air Conditionner
19Oil skimmer
20Foundation pads & bolts kits
21Tool kits
22Operation manuals, PLC& electrical circuit diagrams
23CE safety standard
NoOptional Accessories
124,000 rpm , HSKA63 , Built-in type spindle
220,000 rpm,HSKA63, Built-in type spindle
350T, 90T, arm type ATC
4Air through spindle system
5Coolant through spindle system (30/70 bar)
6Scraper type chip conveyor
7Cutting oil mist cooling device
8Oil mist collection device
9Automatic tool length measurement system
10Automatic workpiece measurement system
11Transformer
12Cutting coolant system
13Spindle Thermal Compensation
143-Axis Ballscrew Cooling
155-Axis Center Dynamic Offset
16Siemens One, 15"

Other products

U800
See More
U800

The Takumi U800, 5-axis machining center, is designed for high precision finishing of medium and large size parts in markets such as dynamic die and mold, aerospace and automobile applications.
